Fits:
For 1969 1970 1971 1972 Chevy Corvette 5.7L 350Cu. V8 Small Block Engines
Manufacturer Part Number: 1655 CC1655 EC1655 MC1655 AE1655,24-80893

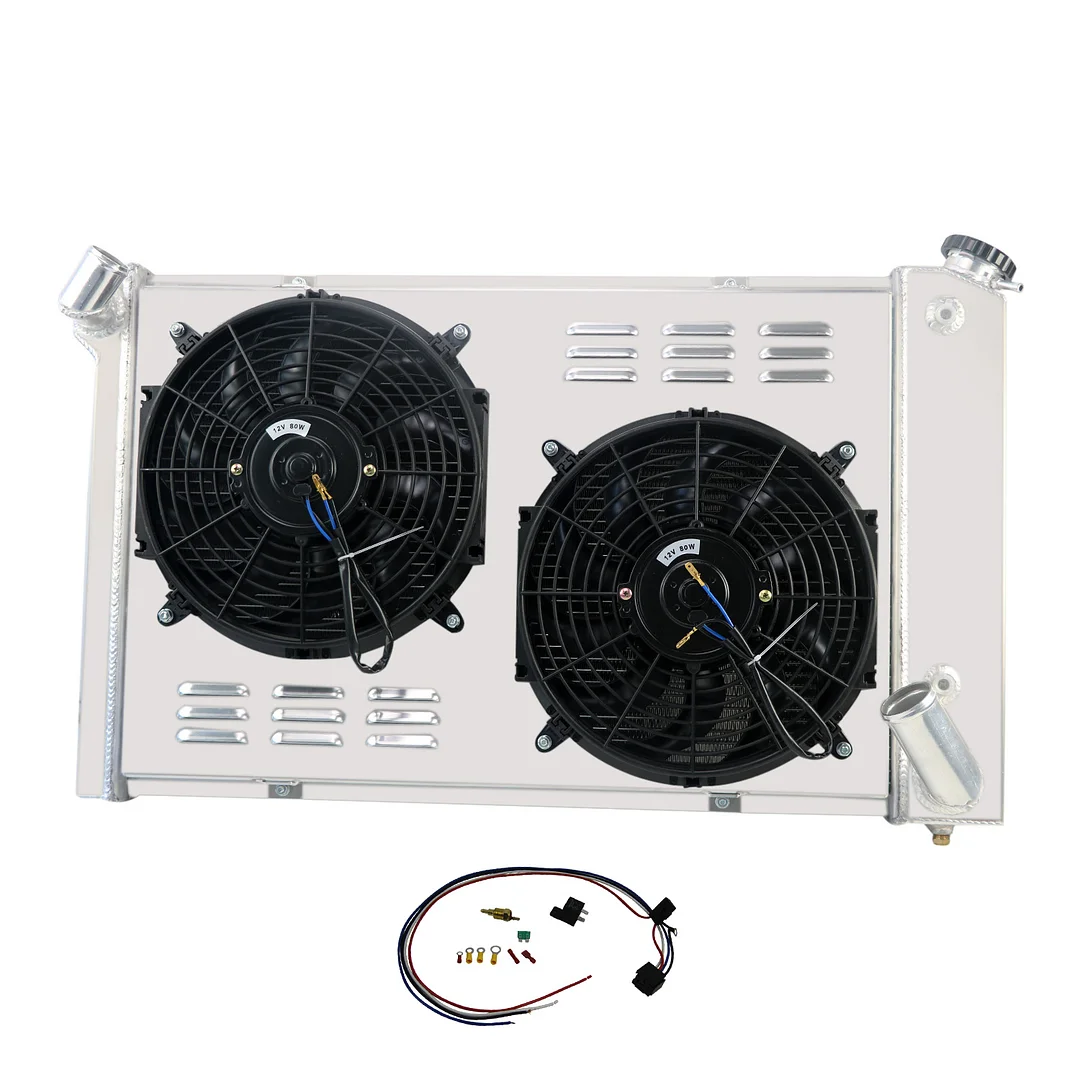

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Specifications:
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Down Flow
Overall Diameter: 20 1/2"H x 31 5/8"W x 6 7/8''Thick
Core Diameter: 17"H x 26"W x 1 3/4''Thick
Inlet Diameter: 1 1/2" located on driver side.
Outlet Diameter: 1 3/4" located on passenger side.
Tanks: 2 1/2" thick
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.
Description:
100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
AA5052 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Thermostat Relay Kit
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe included.Probe typically threads into radiator, water outlet or manifold.
Aluminum plate is pressed, high quality and durable.
