Alloyworks 3 Row Radiator Shroud Fan Relay For 99-2005 Ford F250 F350 F450 6.8L 7.3L AT/MT

Alloyworks 3 Row Radiator Shroud Fan Relay For 99-2005 Ford F250 F350 F450 6.8L 7.3L AT/MT

536-51370DFSXJ90W-BN
$389.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

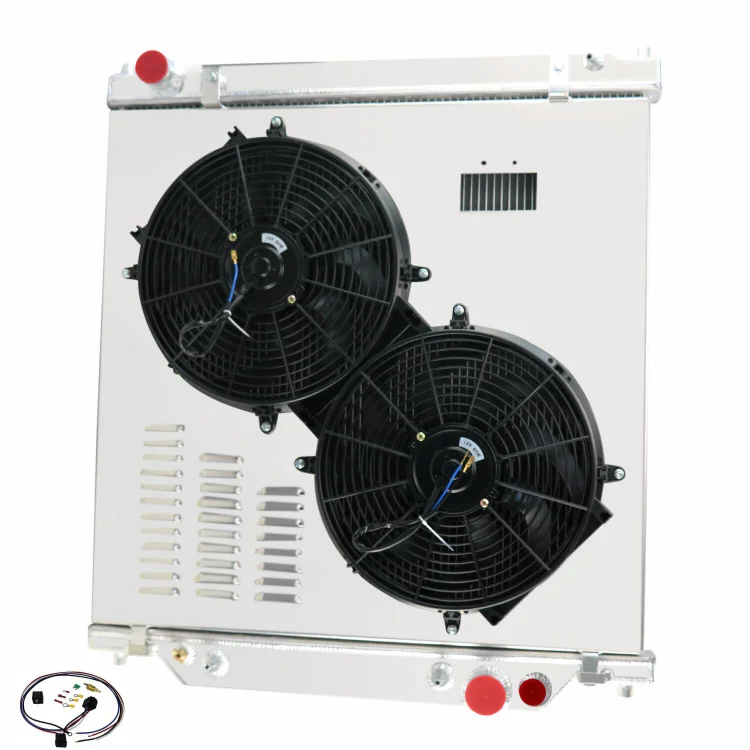

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 12" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
3-Row of tubes Core Racing Design
Overall size: 30" x 31.7"
Core size: 29.4" x 26.5"
Upper Inlet: 1.75"
Lower Outlet: 1.75"
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Features:
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4..Carefully crafted to exceptional OE standards for precise fit.
