Fits: 1993-1997 Jeep Grand Cherokee 4.0L 242Cu. In. l6 GAS OHV Naturally Aspirated
Click here to view all compatible vehicles

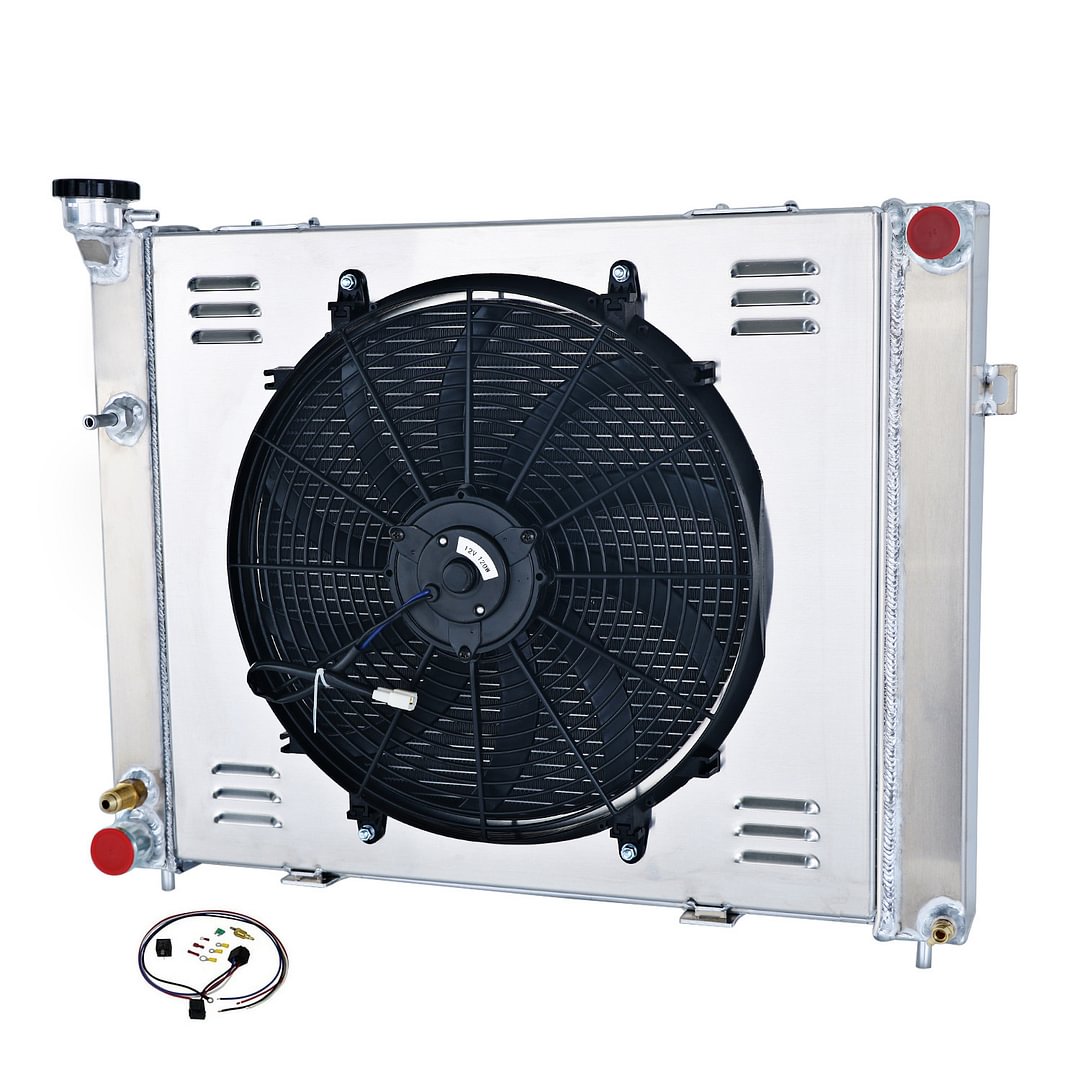

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
3-Row of tubes Core Racing Design
Core Size: 22 1/4" x 19 1/4"
Overall Size: 29.25 " x 22.32 "
Inlet: 1 1/4" On Passenger Side
Outlet: 1 1/2" On Driver Side
Petock Drain:OEM style brass petcock drain
Radiator Cap:CNC machined filler neck and cap
Why choose us? What are the advantages of our product?
1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2.Brazed core technology to guarantee optimum performance and dependability
3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4.Billet Aluminum CNC machined fill neck rugged and durable
5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6..Carefully crafted to exceptional OE standards for precise fit.
Fan Specifications:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
