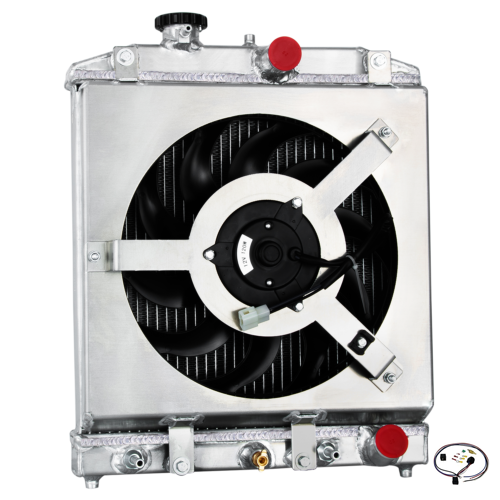

Alloyworks 3 Row Radiator Shroud Fan For Honda Civic 1992-2000 D15 D16 EK EG Acura Integra GS

Alloyworks 3 Row Radiator Shroud Fan For Honda Civic 1992-2000 D15 D16 EK EG Acura Integra GS

536-51553DZFSWJ120W-BN
$199.00
Quantity
Please check if this fits your vehicle before purchasing
We're currently out of stock. Get notifed by email when this product available
please input correct email
Notify Me
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

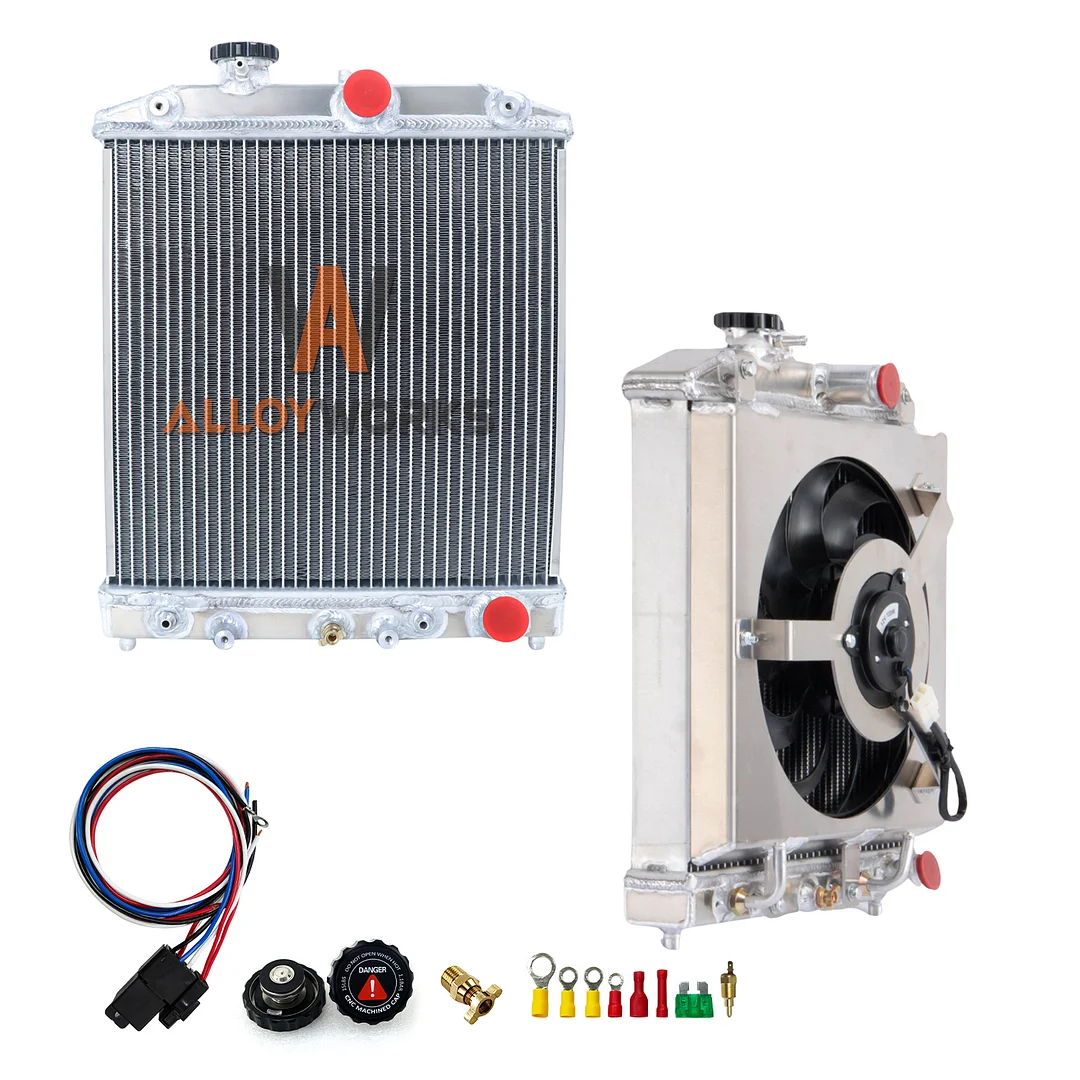

Package Includes:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 12" 120W Fan (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Material: AA5052 Aluminum
Includes CNC machined filler neck and cap
Overall Size: 18 1/2"H X 14 1/2" WX 2 3/4"
Core Size: 14" H x 13 7/8" W
Inlet Size: 1 1/4"
Outlet Size: 1 1/4"
Transmisson Oil Cooler: M14*1.0 Include
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
