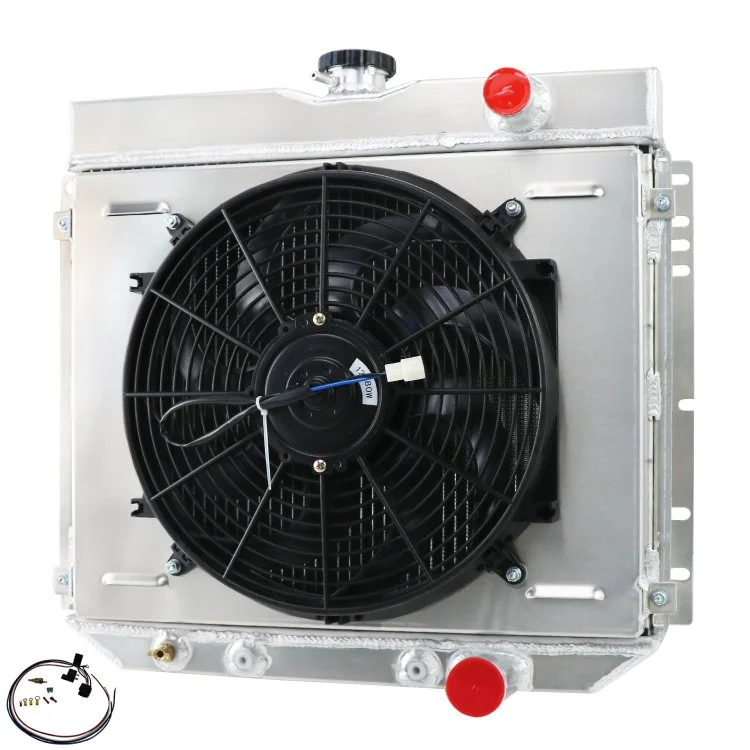

Alloyworks 3 Row Radiator with Shroud Fan For 66-70 Ford Mustang Mercury Cougar Falcon LTD XR7 21" HIGH X 22 1/4" WIDE

Alloyworks 3 Row Radiator with Shroud Fan For 66-70 Ford Mustang Mercury Cougar Falcon LTD XR7 21" HIGH X 22 1/4" WIDE

RAD-FORD-AL-91
$259.00
Quantity
Important Notice

This radiator can be easily purchased incorrectly, please verify the size of your vehicle before placing your order.
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

(Both top hose and bottom hose on Passeger side)

Radiator Size

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Material: High Quality Full AA5052 Aluminum Construction

Core Size: 16 3/8"H x 20 1/4"W x 1.73''T

Overall Size: 21" H x 22 1/4" W x 5.7'' T

Inlet Size: 1 1/2" Passenger Side

Outlet Size: 1 3/4" Passenger Side

Transmission Oil Cooler: ￠22*150*M10*1.0(T)

Tank Size: 3" X 17 3/8"

OEM Style Brass Petcock Drain.

Please Check the Size Before You Buy!

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 14" Fans 90W(Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 14" Fans 90W(Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

ISO/IATF16949 Certified — Full Aluminum Radiator for Superior Cooling and Perfect Fit

Diameter : 14'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Number of Blades: 8 S-Type blades

Maximum Fan CFM(Cubic Feet per Minute): 1730 cfm

Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%

Fan Thickness: 2.64"

Why choose us? What are the advantages of our product?

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fitting, ensure it's hard and durable.

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM style brass petcock drain is much better than other plastic ones.

7. Carefully crafted to exceptional OE standards for a precise fit.

Radiator Features:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run Fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Fan Specification
