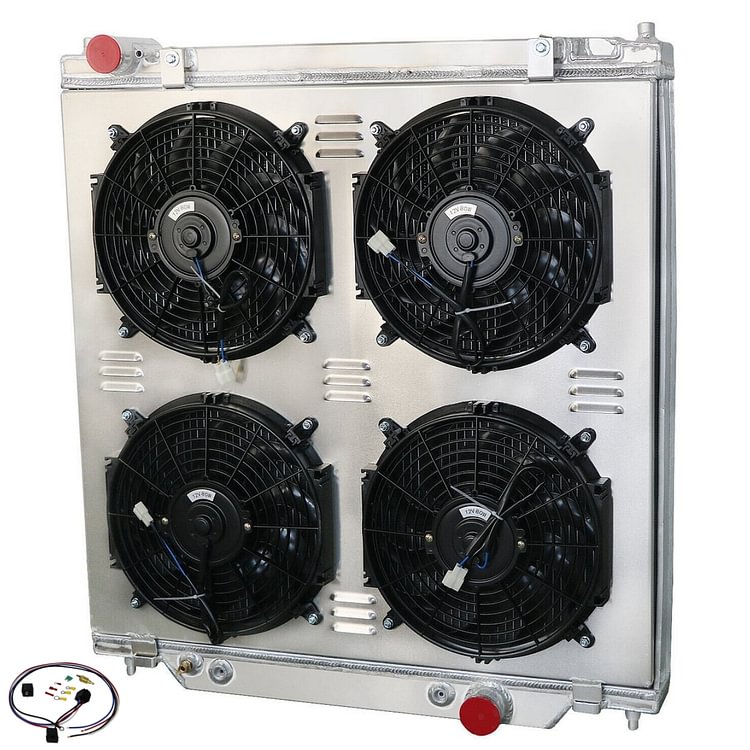

Alloyworks 3 Rows Radiator with Shroud Fan For 2005-07 Ford F250 F350 F550 6.0 6.8L Super Duty 33-4/9" H x 30-1/2" W

Alloyworks 3 Rows Radiator with Shroud Fan For 2005-07 Ford F250 F350 F550 6.0 6.8L Super Duty 33-4/9" H x 30-1/2" W

536-51219DFSXJ90W
$406.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Radiator Size

High-Performance Racing Spec.

3-Row of tubes Core Racing Design

Tank Material: AA5052 Aircraft Grade Aluminum

Core size: 29-6/7" H x 28-3/7" W

Overall size: 33-4/9" H x 30-1/2" W

Inlet hose connection: 1 3/4in. driver side

Outlet hose connection: 2in. passenger side

Engine Oil Cooler: No

Transmission Oil Cooler: 5/8-18UNF

OEM Style Brass Petcock Drain

Please Check the Size Before You Buy!

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

4 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Package Include

1 X 3-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

4 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Fan Specification

Volt :12v

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blade

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Radiator Features

Our Radiator is made of AA5052 aircraft aluminum. AA5052 series Aluminum is much better than the T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easy scratching and corroding, and poor heat dissipation effect. If the T-3303 aluminum radiator is operated at high pressure and high temperature for a long time, the leaking problem will occur very soon.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.

4. Billet Aluminum CNC machined fill neck is rugged and durable.

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.


6. The OEM style brass petcock drain is much better than other plastic ones.

Thermostat Kit Installation

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at a preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to the battery.

WHITE wire to ignition switch power source.

BLACK goes to the thermos switch.

The BLUE wire goes to the Fans.

This setup will run fans & pull air in through the radiator.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Advanced Production Process

Carefully crafted to meet exceptional OE standards for a precise fit, using Aircraft AA5052 grade aluminum.

Leading-edge Technology

Brazed core technology for at least 30%-45% more efficient in heat transferring than stock ones.

Why AlloyWorks

Established in 2006, AlloyWorks has been offering top notch quality car parts to ensure the best satisfaction of customers.

Fan Specification

About AlloyWorks

Established since 2006, AlloyWorks is a professional manufacturer of automotive parts. We are specialized in car radiators/heat exchangers and cooling system components.
