Application:

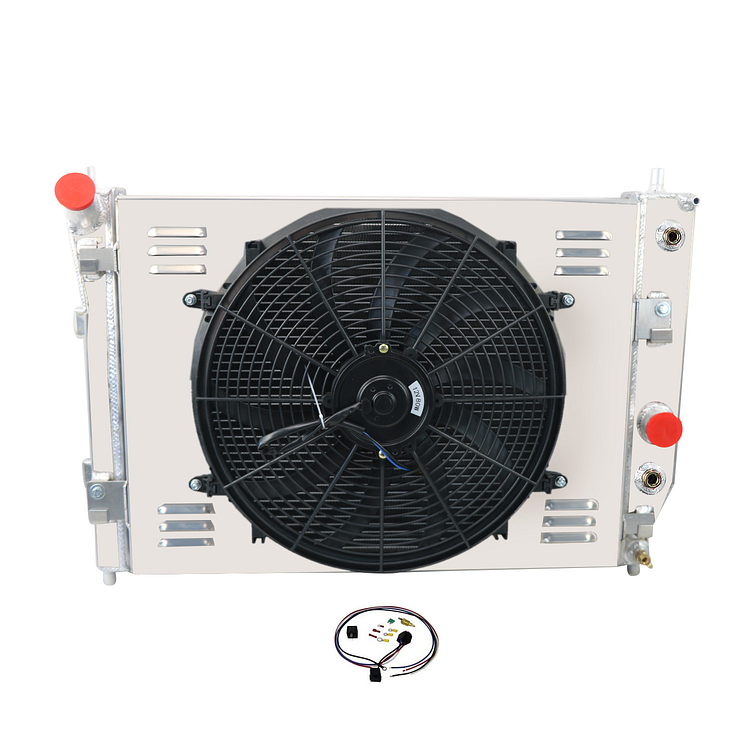

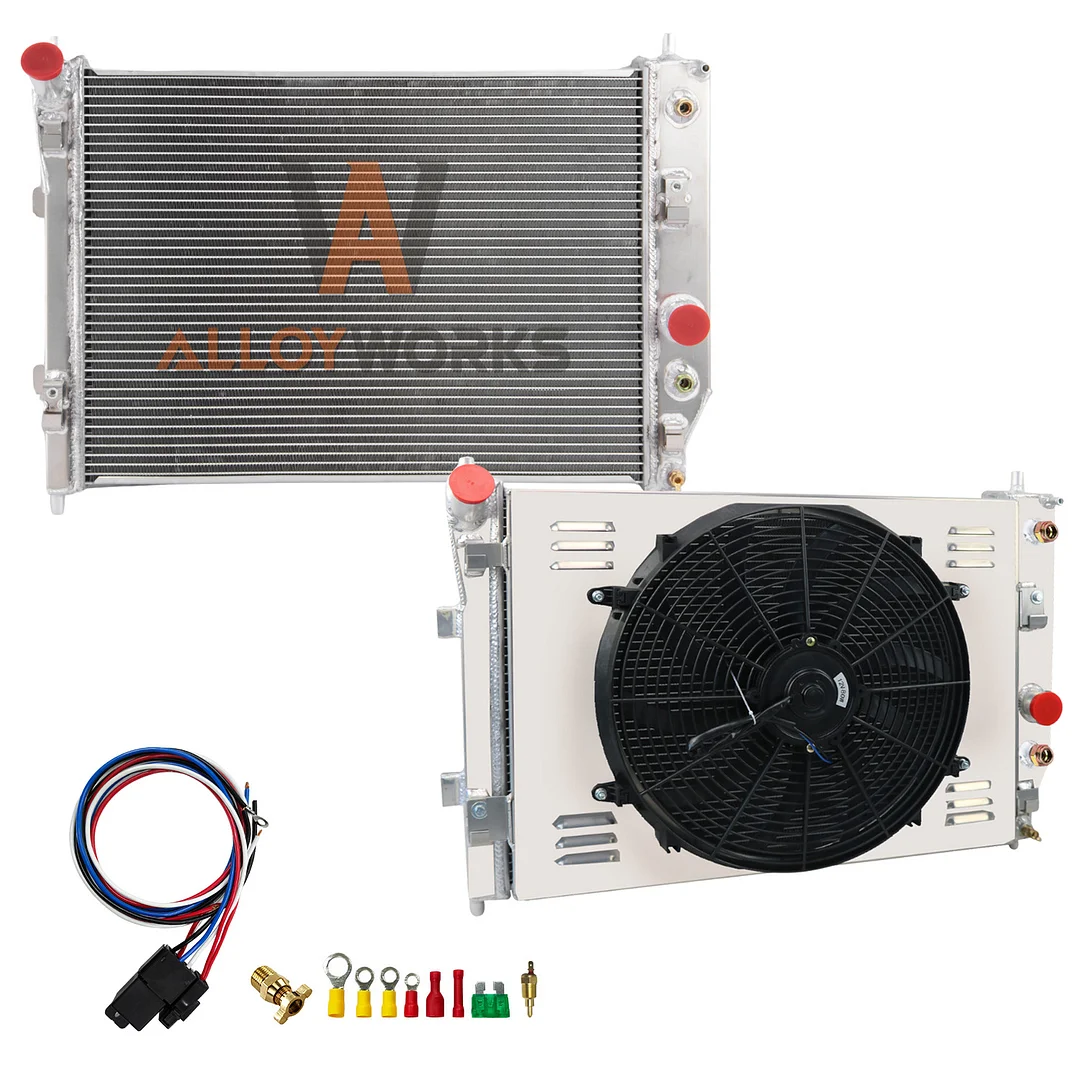

This Radiator Fits:
For Chevy Corvette C6 6.0L 6.2L 7.0L V8 Engines 2005-2013
Manufacturer Part Number: 2714,CC2714,CU2714 LR2714
Interchange Part Number: GM3010510, 21996495
PLS Note:Without Engine Oil Cooler
This Radiator Size:
Material:Full Aluminium
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Dimensions: 23.42" x 17.24"x1.75"
Overall Dimensions: 28.95 " x 20.27 "
Inlet/Outlet Dimensions: 1 3/8"/1 3/8"
Engine Oil Cooler: NO
Automatic Oil Cooler :YES On Passenger Side
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!
Fan Specification:
Diameter: 16'' (Blade to Blade)
Number of Blades: 10 pcs
Maximum Fan CFM(Cubic Feet per Minute): 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Wattage: 120W
Description:
Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. Aluminum Radiator is at least 30%-45% more efficient than stock one. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Covers vast selection of import and domestic applications
Stringently tested to guarantee optimum performance and dependability
Straightforward installation guaranteed
Carefully crafted to exceptional OE standards for precise fit
Made from high-grade materials for prolonged lifespan
Thermostat Kit:
Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet hose or manifold.
