Note: (24" WIDE CORE-TOP HOSE PASSENGER - BOTTOM HOSE DRIVER)
Fitment:
1968 Ford Mustang 7.0L 427Cu. In. V8
1967-1970 Ford Mustang 3.3L 200Cu. In. l6 / 7.0L 428Cu. In. V8
1969-1970 Ford Mustang 4.1L 250Cu. In. l6 / 5.8L 351Cu. In. V8 / 7.0L 429Cu. In. V8
1968-1967 Ford Mustang 4.7L 289Cu. In. V8
1968-1970 Ford Mustang 5.0L 302Cu. In. V8
1967-1969 Ford Mustang 6.4L 390Cu. In. V8
1967-1969 Ford Fairlane 3.3L 200Cu. In. l6 / 6.4L 390Cu. In. V8 / 7.0L 427Cu. In. V8
1968-1969 Ford Fairlane 5.0L 302Cu. In. V8 / 7.0L 428Cu. In. V8
1969 Ford Fairlane 4.1L 250Cu. In. l6 / 4.7L 289Cu. In. V8 / 5.8L 351Cu. In. V8
1967-1968 Ford Falcon 2.8L 170Cu. In. l6 / 3.3L 200Cu. In. l6 / 4.7L 289Cu. In. V8
1968 Ford Falcon 5.0L 302Cu. In. V8
1967-1968 Ford Ranchero 3.3L 200Cu. In. l6
1968-1969 Ford Ranchero 5.0L 302Cu. In. V8 / 7.0L 428Cu. In. V8
1967-1969 Ford Ranchero 6.4L 390Cu. In. V8
1969 Ford Ranchero 4.1L 250Cu. In. l6
1967 Ford Ranchero 4.7L 289Cu. In. V8
1969 Ford Ranchero 5.8L 351Cu. In. V8
1967 Ford Ranchero 5.8L 352Cu. In. V8
1968 Mercury Cougar 4.7L 289Cu. In. V8 / 7.0L 427Cu. In. V8
1968-1970 Mercury Cougar 5.0L 302Cu. In. V8 / 6.4L 390Cu. In. V8 / 7.0L 428Cu. In. V8
1969-1970 Mercury Cougar 5.8L 351Cu. In. V8 / 7.0L 429Cu. In. V8
Radiator Configuration:
3-Row of tubes Core Racing Design
Core size approx: 24" W x 16 1/3" H x 1 3/4'' Thick
Overall size approx: 25 2/5" W x 21 4/9" H x 6''Thick
Upper inlet: 1-1/2" located on passenger side.
Lower outlet: 1-3/4" located on driver's side.
Transmission Cooler: ¢22*205*1/8-27NPT(Z)
Fan Specifications:
Volt: 12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 10.050”
Thickness (in): 2.500”
Number of Blades: 6 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

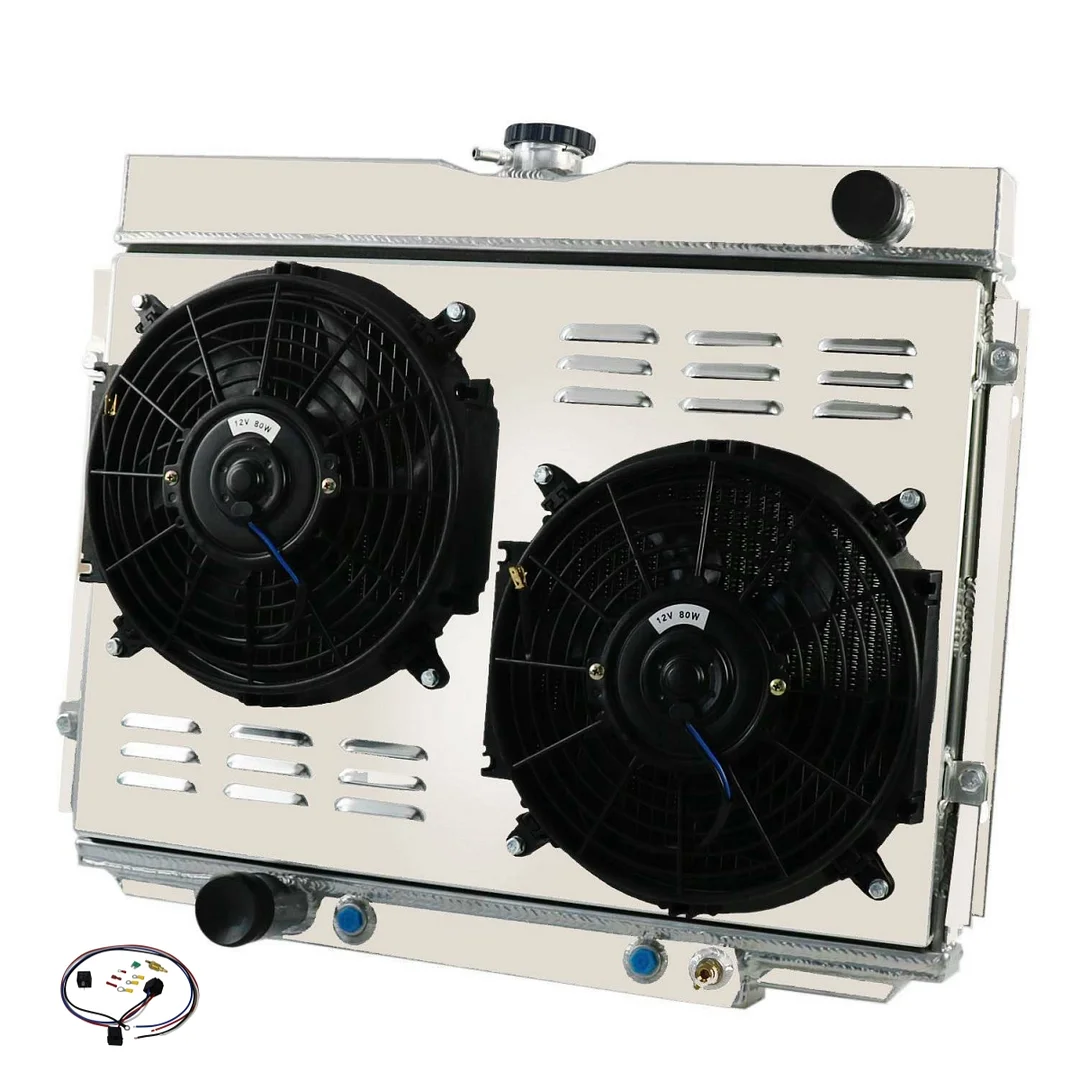

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 10" 90W Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at the preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
The probe typically threads into the radiator, water outlet, or manifold.
RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to the thermos switch.
The BLUE wire goes to the Fans.
Description:
The Alloyworks All-Aluminum Radiator is made from AA5052 aircraft aluminum, which outperforms the common T-3303 series aluminum used by over 90% of aftermarket manufacturers. While T-3303 is cheaper, it has several drawbacks, including poor polishing, softness, easy scratching, corrosion, and subpar heat dissipation. T-3303 radiators can also develop leaks under high pressure and temperature.
In contrast, AA5052 aluminum offers superior corrosion resistance, strength, and heat transfer. Widely used in aircraft fuel tanks and vehicle parts, it's designed for maximum cooling efficiency, making it 30%-45% more effective than stock radiators. With a higher coolant capacity, this Mustang radiator is built to withstand temperature surges, ensuring a more efficient and reliable cooling system, especially in high-performance and racing applications.
