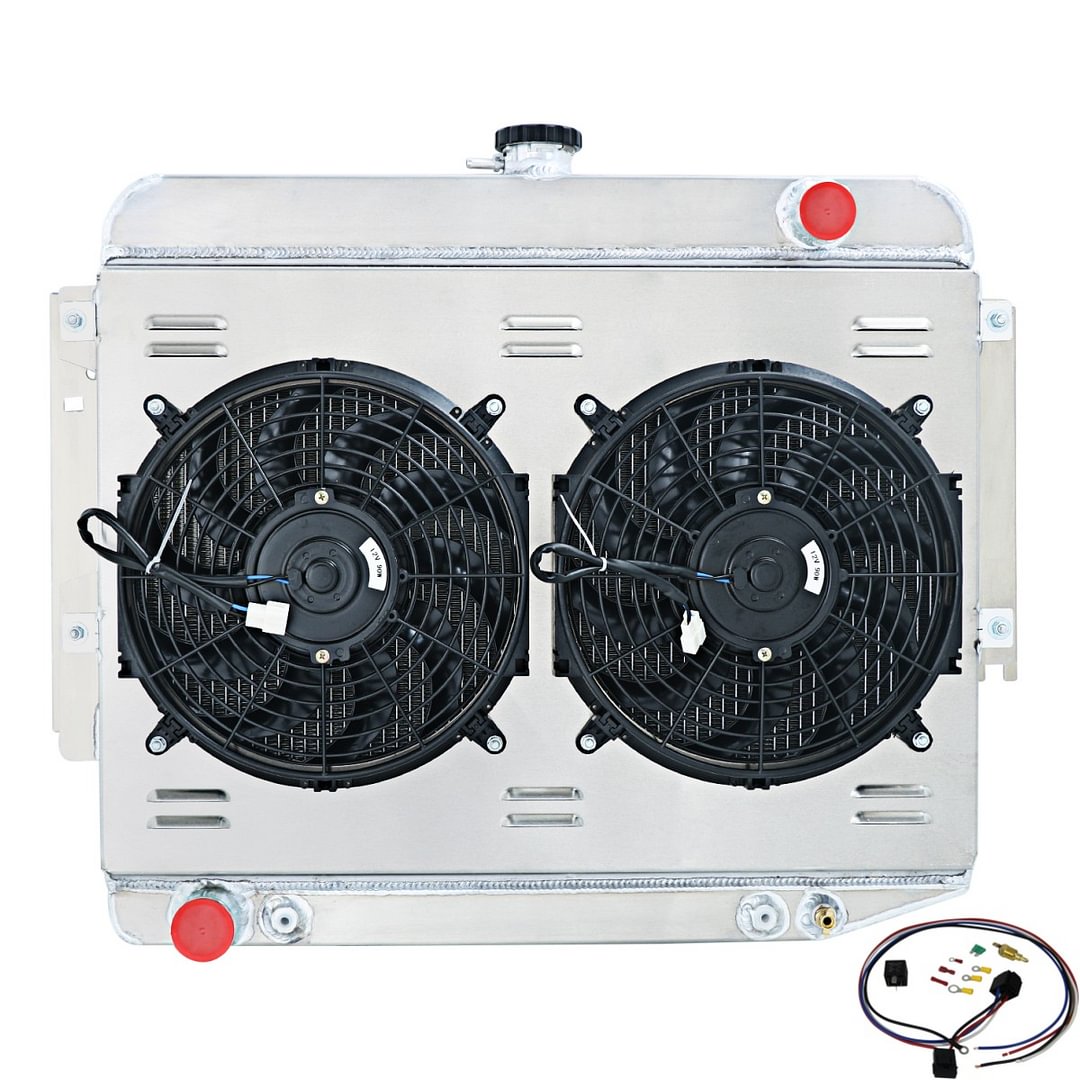

3 Row Radiator Shroud Fan For 1966-1969 Dodge Charger 500 7.2L V8 Big Block

3 Row Radiator Shroud Fan For 1966-1969 Dodge Charger 500 7.2L V8 Big Block

536-51503DZFSXJ90W
$299.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:

1966 Dodge Charger 5.9L 5917CC 361Cu. In. V8
1966-1969 Dodge Charger 6.3L 383Cu. In. V8 & 7.0L 426Cu. In. V8
1967-1969 Dodge Charger 7.2L 7211CC 440Cu. In. V8

Click here to view all compatible vehicles

This Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Down Flow
Tank Material: AA5052 Aluminum
Core Material: AA5052 Aluminum
Overall Height: 24 1/2"
Overall Width: 30"
Core Height: 18 1/2"
Core Width: 26"
Inlet Location: Passenger
Inlet Diameter: 1 1/2"
Outlet Location: Driver
Outlet Diameter: 1 3/4"
 Transmission Oil Cooler: Yes
OEM Style Brass Petcock Drain
CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2150cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.

Description
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
