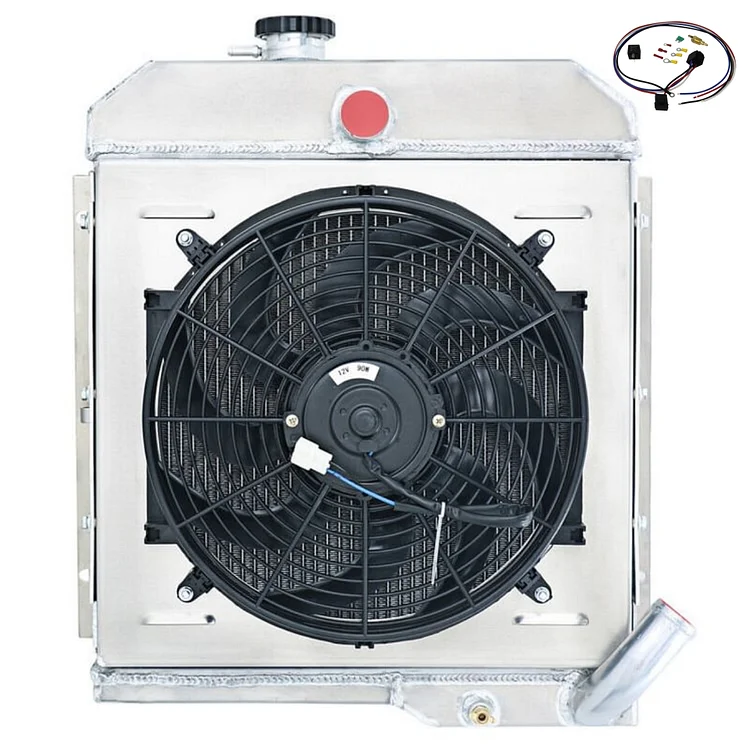

3 Row Radiator Shroud Fan For 1965-1971 1969 Jeep CJ5 3.7L Buick V6 Engine

536-51270DZFSXJ90W
$249.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits:
1965-1968 Jeep CJ5/CJ6/ 2.2L 134Cu. In. l4
1966-1968 Jeep CJ5/CJ6 3.7L 225Cu. In. V6
1968 Jeep CJ5/CJ6 3.1L 192Cu. In. l4
1968 Jeep CJ5/CJ6 3.2L 192Cu. In. l4
1965-1968 Jeep DJ5/DJ6 2.2L 134Cu. In. l4
1965-1968 Jeep DJ5/DJ6 3.2L 192Cu. In. l4
1966-1968 Jeep DJ5/DJ6 3.7L 225Cu. In. V6

Click here to view all compatible vehicles

Package included:
1 X 3-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP
1 X AA5052 Aluminum Shroud
1 X 14" 90W Fan
1 X Thermostat Temperature Switch Relay Kit

This Radiator Size:
3-Row of tubes Core Racing Design
Core Dimensions: 16 9/16" W x 17 1/4" H
Overall Dimensions: 19 3/4" W  x 22'' H
Inlet Location: Center
Inlet Diameter: 1 1/2"
Outlet Location: Passenger
Outlet Diameter: 1 1/2"
Internal Transmission Oil Cooler: No
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Fan Specification:
Diameter : 14'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Number of Blades: 8 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2250cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Fan Thickness: 2.64"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 90 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.



Thermostat Relay Kit Instructions:

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
