Click here to view all compatible vehicles
Motor is 90W

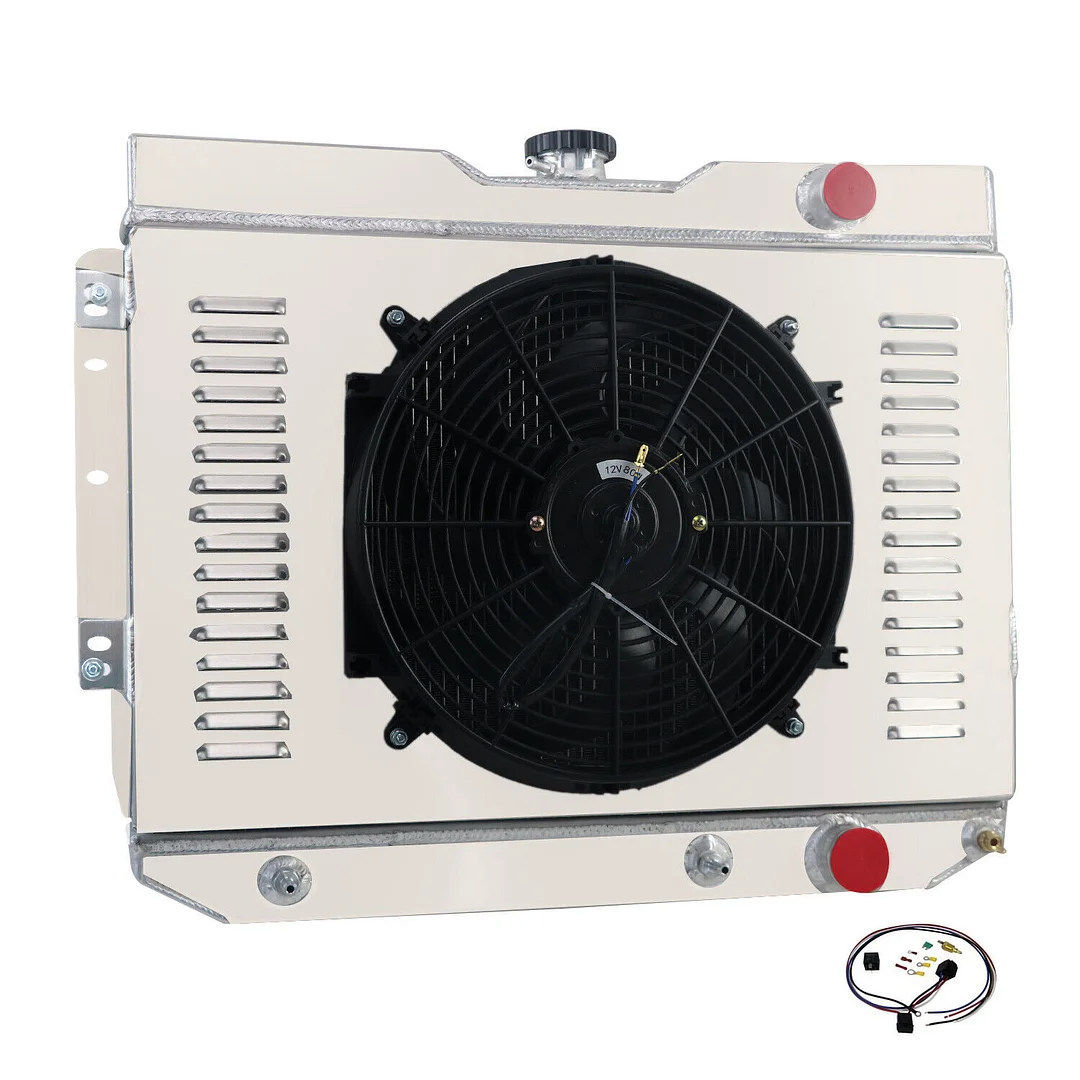

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
3-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Overall: 21 3/4" tall x 28" wide
Core: 16 1/2" tall x 24 1/2" wide
Inlet: 1 1/2" located on passenger side.
Outlet: 1 3/4" located on passenger side.
Mounting Type: Flanges Mounted
Transmission Oilcooler : include
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050"
Thickness (in): 2.500"
Number of Blades: 8 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
The advantages of our radiator：
Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
Brazed core technology to guarantee optimum performance and dependability
All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
Billet Aluminum CNC machined fill neck rugged and durable
CNC machined cap with Engraved craftsmanship, anodized treatment.
Carefully crafted to exceptional OE standards for precise fit.
