Fits:
1949-1952 Chevrolet Styleline Deluxe
1949-1952 Chevrolet Styleline Special
1949-1952 Chevrolet Fleetline
1950-1954 Chevrolet Bel Air
1953-1954 Chevrolet One-Fifty Series
1953-1954 Chevrolet Two-Ten Series
Fit 3.5L/ 3.8L/ 3.9L V8 Conversion Only
Specifications:
Radiator Material: AA5052 Aircraft Grade Aluminum
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Down Flow
Overall: 23 1/3" H x 25 1/5" W x 6 5/7''Thick
Core: 17 1/8" H x 21 1/2" W x 1 3/4''Thick
Inlet: 1 1/2" located on the ccheck
Outlet: 1 3/4" located on passenger side
Trans Cooler : ¢26×250×1/8-27NPT(T)
CNC machined filler neck and cap
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Fan Specification:
Diameter: 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM: 3,000 cfm
Maximum Fan RPM: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

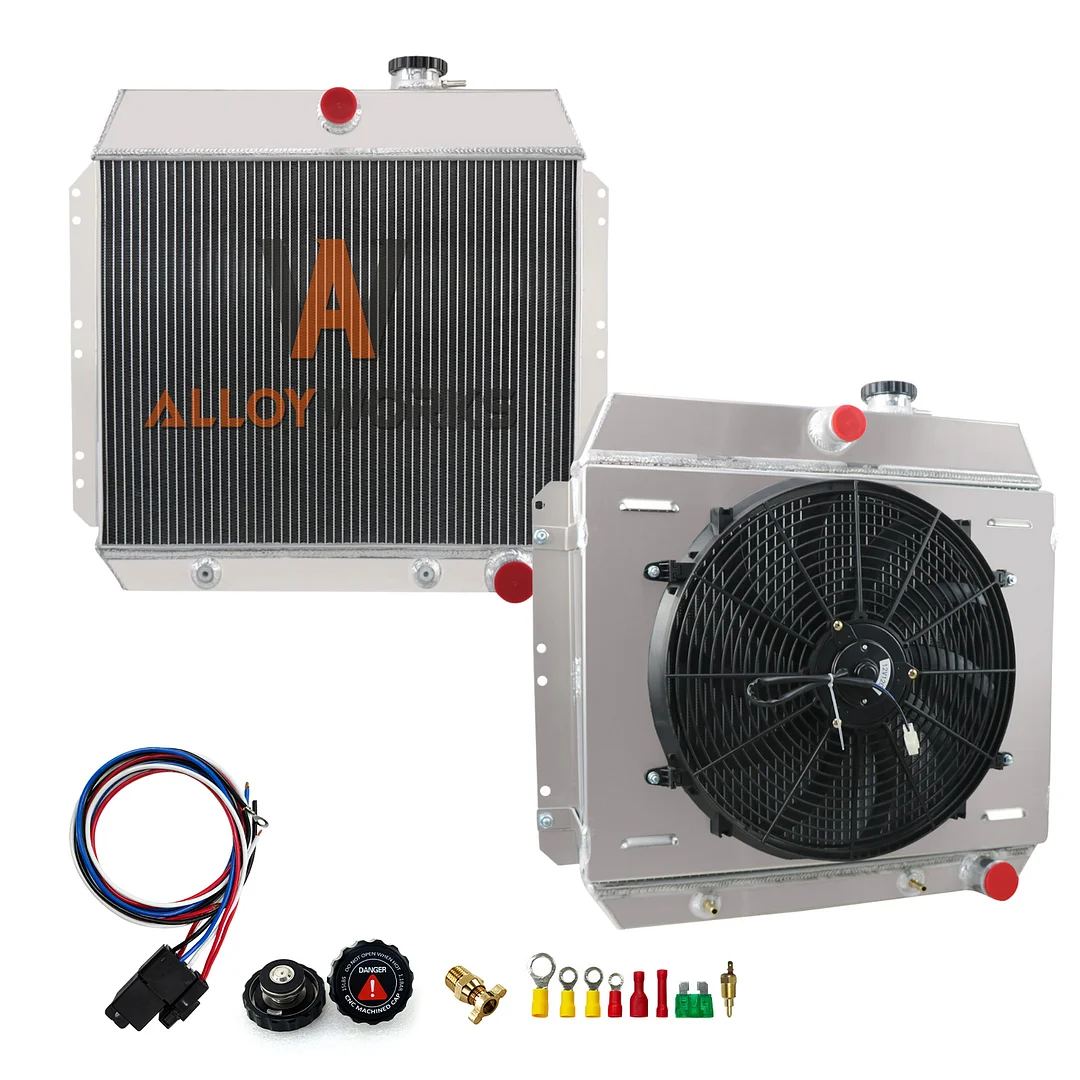

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16''Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans
Features:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
- 1. ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling and Perfect Fit
- 2. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.
- 3. Brazed core technology to guarantee optimum performance and dependability.
- 4. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
- 5. The OEM style brass petcock drain is much better than other plastic ones.
Aluminum plate is pressed, high quality and durable.
