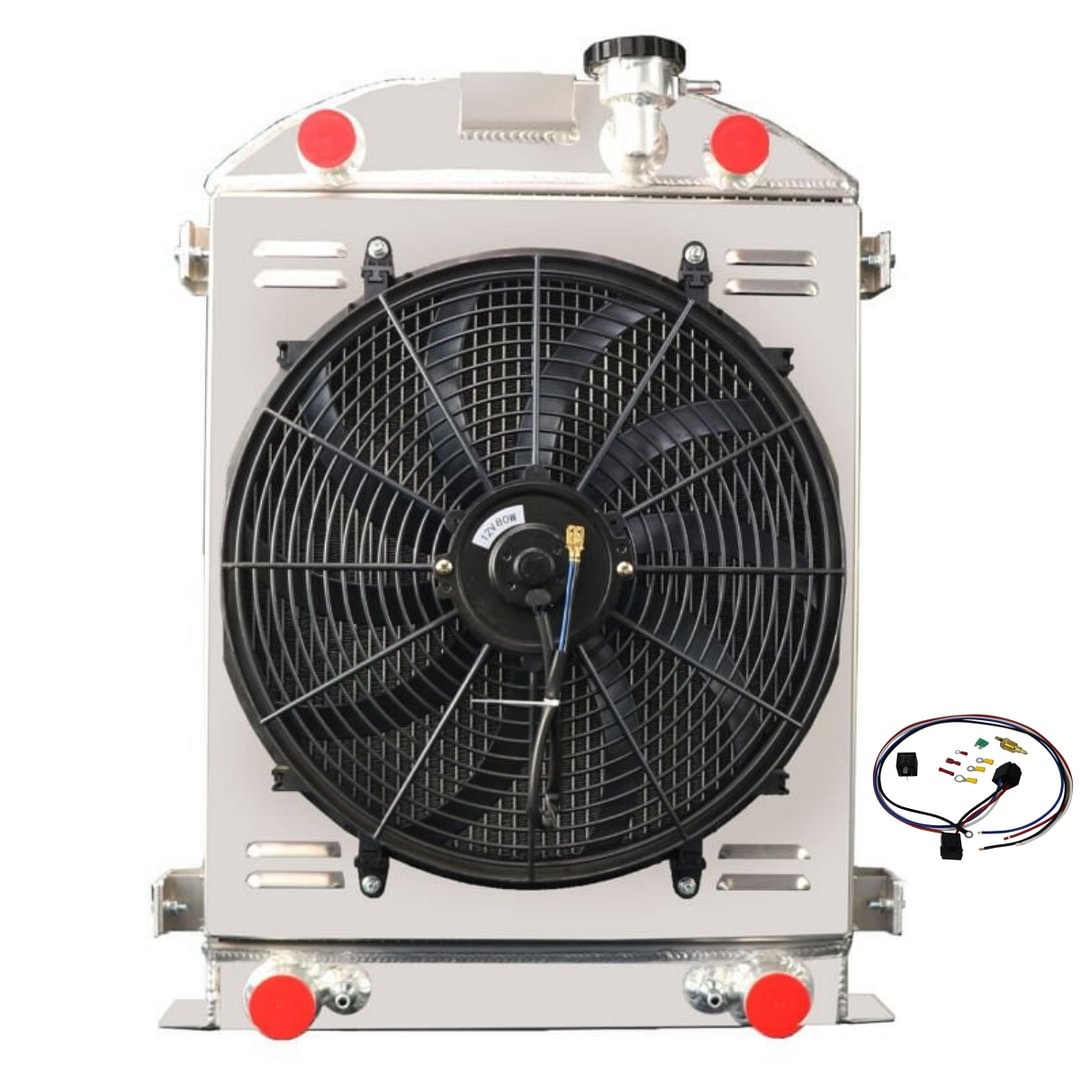

Alloyworks 3 Row Radiator Shroud Fan For 1930-1932 Ford MODEL Truck Flathead V8 Engine

Alloyworks 3 Row Radiator Shroud Fan For 1930-1932 Ford MODEL Truck Flathead V8 Engine

536-51030DZFSXJ120W
$259.00
Quantity
Please check if this fits your vehicle before purchasing
Visible only when the product is out of stock. Currently in preview mode.
Notify Me
(function(){ function $(selector){ return document.querySelector(selector); } const EMAIL_REG = /^(([^<>()[\]\\.,;:\s@"]+(\.[^<>()[\]\\.,;:\s@"]+)*)|(".+"))@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\])|(([a-zA-Z\-0-9]+\.)+[a-zA-Z]{2,}))$/; // 获取dom数据 const doms = { button: $('#app-arrival-reminder-button'), previewBox: $('#app-arrival-reminder-preview-box'), toast: $('#app-arrival-reminder-toast'), lightbox: $('#arrival-lightbox'), datalist: $('#app-arrival-reminder-email-list'), imgRender: $('#app-arrival-reminder-product-image-render'), productVariant: $('#app-arrival-reminder-product-variant'), emailInput: $('#app-arrival-reminder-form .reminder-email-input'), emailWarn: $('#app-arrival-reminder-form .reminder-email-warn-wrap'), emailWarnText: $('#app-arrival-reminder-form .reminder-email-warn-text'), submitButton: $('#app-arrival-reminder-submit-button') }; // 选中的sku数据 let selectedVariant = {"id":"52cf48f0-0c79-4db3-87b8-f8408dcf2b07","product_id":"7e5e0a17-9178-470c-8561-d8763a61523f","title":"","weight_unit":"kg","inventory_quantity":25,"sku":"536-51030DZFSXJ120W","barcode":"","position":1,"option1":"","option2":"","option3":"","note":"","image":null,"wholesale_price":[{"price":259,"min_quantity":1}],"weight":"0","compare_at_price":"0","price":"259","retail_price":"0","available":true,"url":"\/products\/3-row-radiator-shroud-fan-for-1930-1932-ford-model-truck-flathead-v8-engine?variant=52cf48f0-0c79-4db3-87b8-f8408dcf2b07","available_quantity":25,"options":[],"off_ratio":0,"flashsale_info":[],"sales":0}; // 上报 function reportData(params){ // 编辑/预览不上报 if(false){ return; } window.sa.track(params.event_name, { business_type: 'product_plugin', function_name: 'Back_in_Stock', plugin_name: "Back_in_Stock", template_name: "product", template_type: 1, module: "apps", module_type: "Back_in_Stock", event_info: JSON.stringify({ action_type: 'Back_in_Stock' }), ...params }); } // 按钮曝光上报 function buttonPVReport(){ reportData({ event_name: 'function_expose', event_type: 'expose', event_desc: '无货商品时触发' }); } // 弹窗曝光上报 function popupPVReport(){ reportData({ event_name: 'function_expose', event_type: 'popup_expose', event_desc: '弹窗曝光时触发' }); } // submit按钮点击上报 function submitClickReport(){ reportData({ event_name: 'function_click', event_type: 'popup_click', event_desc: '填入邮箱之后，点击notify 触发', event_info: JSON.stringify({ action_type: 'email_click' }), }); } // -----------------------初始化----------------- init(); // 初始化操作 function init(){ // 为确保window有后面添加的值例如window.sa 需要在DOMContentLoaded回调事件中执行逻辑 document.addEventListener("DOMContentLoaded", function() { // 设置邮件联想 setDataList(); if(!true){ // 初始无货 按钮pv事件埋点上报 buttonPVReport(); } }); } // 设置邮件联想 function setDataList(){ const customer_email = window.C_SETTINGS.customer.customer_email; if(customer_email){ const options = document.createElement('option'); options.setAttribute('value', customer_email); doms.datalist.appendChild(options); } } // -----------------------事件操作---------------- // 监听sku变化事件 document.addEventListener('dj.variantChange', variantChange); // 监听提醒按钮点击事件 doms.button.addEventListener('click', reminderButtonClick); // 监听提交按钮点击事件 doms.submitButton.addEventListener('click', submit); // 监听input元素的keydown事件 doms.emailInput.addEventListener('keydown', function(e) { // 判断是否按下了Enter键 if (e.keyCode === 13 || e.key === 'Enter') { submit(); } }); // 显示正常按钮 function showReminderButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); buttonPVReport(); } // 展示预览按钮 function showPreviewButton(){ doms.button.classList.remove('app-arrival-hidden'); doms.previewBox.classList.remove('app-arrival-preview-hidden'); } // 隐藏按钮 function hiddenReminderButton(){ doms.button.classList.add('app-arrival-hidden'); doms.previewBox.classList.add('app-arrival-preview-hidden'); } // 提交数据, 请求接口 function submit(){ // 获取邮箱数据 const email = doms.emailInput.value.trim(); if(!email){ doms.emailWarnText.innerText = "Please enter your email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } if(!EMAIL_REG.test(email)){ doms.emailWarnText.innerText = "Please enter a valid email address"; doms.emailWarn.classList.remove('app-arrival-hidden'); return; } // 邮箱校验成功 doms.emailWarn.classList.add('app-arrival-hidden'); // 预览时不调接口 if(false){ SPZ.whenApiDefined(doms.toast).then(apis => { apis.showToast("Currently in preview mode, subscription is for testing only", 3000); }); return; } // 加入loading样式 doms.submitButton.classList.add('reminder-submit-button-loading'); // 提交数据请求接口 let quantity = 1; const quantityDom = $('#app-arrival-reminder-quantity-render ljs-quantity'); if(quantityDom){ quantity = Number(quantityDom.getAttribute('value')) || 1; } const params = { customer_email: email, product_num: quantity, product_id: selectedVariant.product_id, product_variant_id: selectedVariant.id }; fetch("/api/front/gobbler/v1/subscribe", { method: 'POST', body: JSON.stringify(params), headers: { 'Content-Type': 'application/json' } }).then((res)=>res.json()).then((res)=>{ /* 后端错误提示 */ if(res.errors && res.errors.length){ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast(res.errors[0], 3000); }); return; } /* code * 0 SUCCESS 订阅成功 * 1 PRODUCT_OFFLINE 商品下架 * 2 INVENTORY_NOT_EMPTY 商品库存不为空 * 3 REPEAT_SUBSCRIBE 重复订阅 * 4 EMAIL_EMPTY 邮件为空 * 5 EMAIL_WRONG_FORMAT 邮件格式错误 * 99999 INVALID_PARAMS 其他参数错误 */ const codeMap = { SUCCESS: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Thank you for your subscription! We will notify you as soon as the product is back in stock!", 3000); }); }, INVENTORY_NOT_EMPTY: ()=>{ SPZ.whenApiDefined(doms.lightbox).then(apis=>{ apis.close(); }); SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Subscription failed. Product back in stock, please proceed to checkout.", 3000); }); setTimeout(()=>{ window.location.reload(); }, 3000); }, REPEAT_SUBSCRIBE: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("You've already subscribed to this product. We'll let you know as soon as it's back in stock. Feel free to explore our other products.", 3000); }); }, EMAIL_EMPTY: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter your email address", 3000); }); }, EMAIL_WRONG_FORMAT: ()=>{ SPZ.whenApiDefined(doms.toast).then(apis=>{ apis.showToast("Please enter a valid email address", 3000); }); } }; codeMap.PRODUCT_OFFLINE = codeMap.SUCCESS; codeMap[res.code] && codeMap[res.code](); }).finally(()=>{ doms.submitButton.classList.remove('reminder-submit-button-loading'); }); // submit点击上报 submitClickReport(); } // 重新渲染dialog function refreshRenderDialog(){ console.log('selectedVariant', selectedVariant); const images = selectedVariant.image || {"src":"\/\/img.staticdj.com\/3ff8bcd7910986b60eed46073e07e678.jpg","path":"3ff8bcd7910986b60eed46073e07e678.jpg","width":1200,"height":1200,"alt":"Alloyworks 3 Row Radiator Shroud Fan For 1930-1932 Ford MODEL Truck Flathead V8 Engine","aspect_ratio":1}; const imagePosition = images.aspect_ratio > 1 ? 'left top' : 'center center'; // 重新渲染图片 SPZ.whenApiDefined(doms.imgRender).then((apis)=>{ apis.render({ images, imagePosition }); }); // 邮件错误提示置空 doms.emailWarn.classList.add('app-arrival-hidden'); // 重新渲染款式说明 if(selectedVariant.title){ doms.productVariant.innerText = selectedVariant.title.split('-').join('/'); } // 表单数据置空 doms.emailInput.value = ''; } // sku变化 单一款式不会触发 function variantChange(e){ const selected = e.detail.selected; // 子款式没变不执行操作 例如数量变化 if(selected.id === selectedVariant.id){ return; } selectedVariant = selected; console.log('selectedVariant', selectedVariant); // 数量变化 if(selected.available || selected.product_id === undefined){ // 有库存 编辑时展示预览按钮 否则隐藏按钮 if(false){ showPreviewButton(); }else { hiddenReminderButton(); } }else{ // 无库存 显示正常按钮 showReminderButton(); } } // 提醒按钮点击 function reminderButtonClick(){ refreshRenderDialog(); // 弹窗曝光上报 popupPVReport(); } document.body.appendChild(doms.toast); document.body.appendChild(doms.lightbox.parentElement); })();
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Fits: 1930 1931 Ford Model A 3.3L 3278CC 200Cu. In. l4 GAS L-HEAD
        1932 Ford Model B 3.3L 3278CC 200Cu. In. l4 GAS L-HEAD Chevy V8 engine swap

Click here to view all compatible vehicles

The overall height is 25-1/2" which is the stock height,please check the listed dimension and picture to make sure this one work for your purpose before your purchase. This inlet is 1-1/4" and outlet is 1-5/8". Check the dimension below

Package included：
1 X 3-ROW Aluminum Radiator+1.3BAR CNC CAP
1 X Aluminum Shroud
1X 16" 120W Fan
1 X Thermostat Temperature Switch Relay Kit

size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: AA5052 Aluminum
Includes CNC machined filler neck and cap
core size:20"Hx17-1/4"W
overall size: 25-1/2"H * 19-1/2"W * 3"T (overall size with side brackets)
top tank inlets:1-1/4" Inch
bottom tank inlets: 1-5/8" Inch
OEM Style Brass Petcock Drain
Trans Cooler: φ26*250*M12*1.25

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
