Fits:
1985-1996 Ford Bronco/F-150/F-250 5.0L 302Cu. In. V8 / 5.8L 5753CC 351Cu. In. V8
1985-1996 Ford F-250 7.5L 460Cu. In. V8
1985-1997 Ford F-350 5.8L 5753CC 351Cu. In. V8 / 7.5L 460Cu. In. V8
1997 Ford F-250 HD 5.8L 5753CC 351Cu. In. V8 / 7.5L 460Cu. In. V8
1988-1997 Ford F Super Duty/F53 7.5L 460Cu. In. V8
Radiator Size:
Core Dimensions: 17-2/3" High x 27-1/2" Wide x 1 3/4''Thick
Overall Dimensions: 21-2/3" High x 37-5/7" Wide x 3" Tank Thickness
Upper Inlet: 1-3/4" located on the passenger side.
Lower Outlet: 1-3/4" located on the driver side.
Transmission Cooler: ¢38×305×1/4-18NPT(T)

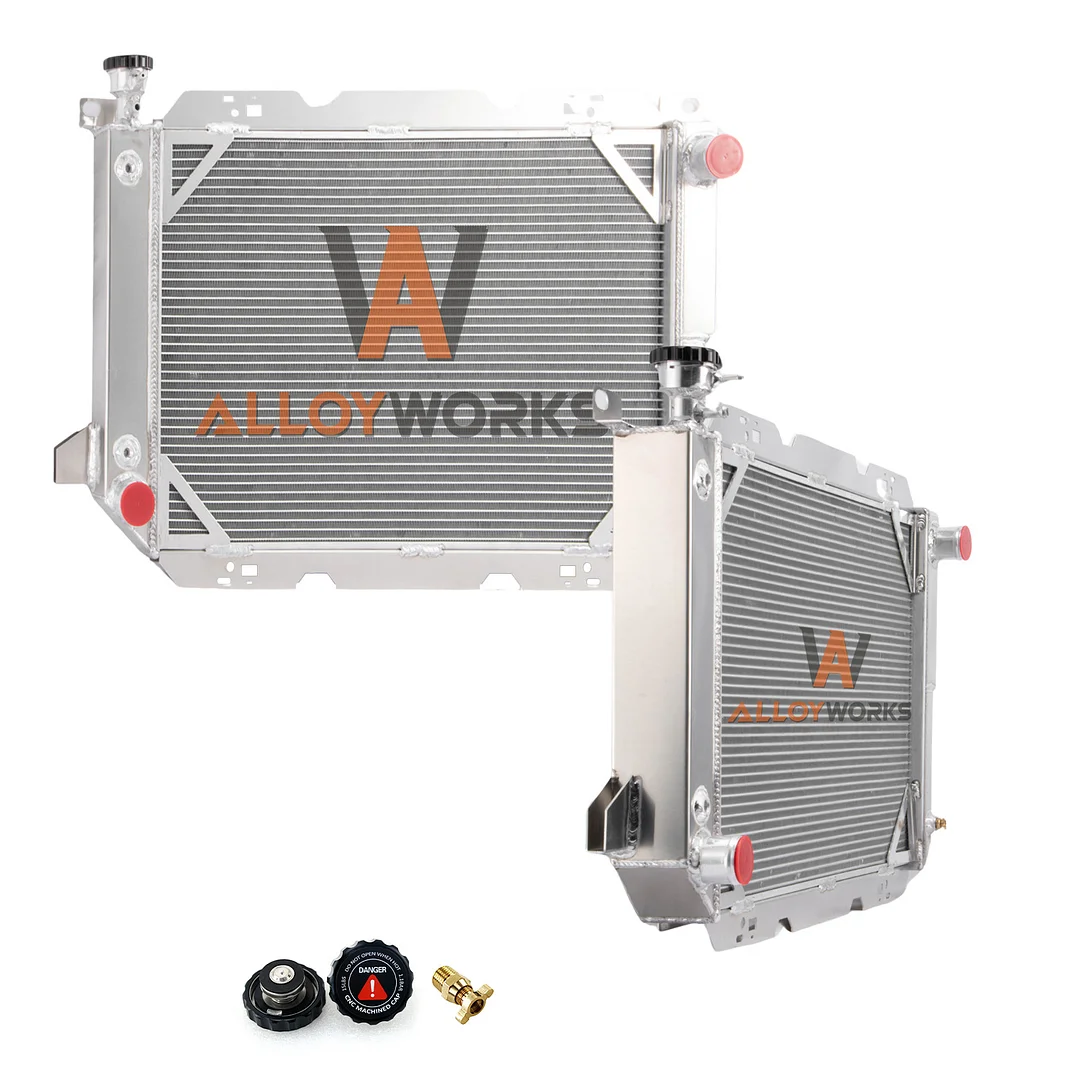

ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling and Perfect Fit
3-Row of tubes Core Racing Design
Radiator Material: AA5052 Aircraft Grade Aluminum
CNC machined filler neck and cap
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!
Features:
This high-performance aluminum radiator is crafted with precision, featuring a core welded in a vacuum brazing furnace—no epoxy used. The radiator is 100% TIG welded for superior strength and durability. Made from high-quality AA5052 aircraft-grade aluminum, it offers a stronger, higher coolant capacity than OEM units.
Designed for maximum cooling efficiency, this full aluminum radiator helps prevent premature engine failure. Its lightweight, high-heat-transferring aluminum construction, combined with a tube-and-fin design, dramatically increases surface area, allowing heat to dissipate more effectively. Offering 35% to 45% more efficiency than stock radiators, it also boasts a significantly higher coolant capacity, improving system performance and enhancing resistance to temperature surges, especially in racing applications.
