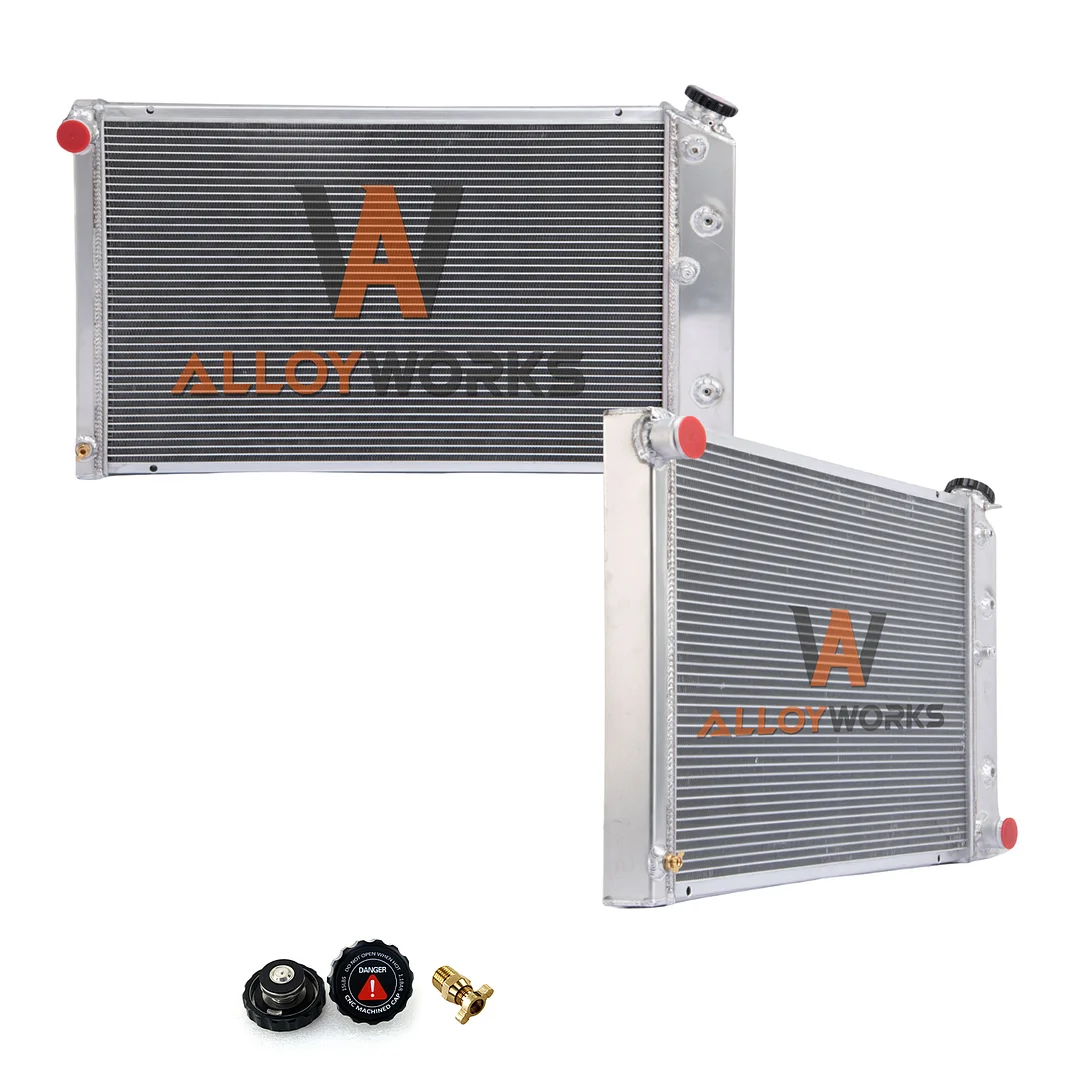

3-Row Radiator For Chevy El Camino 78-87/Impala 80-85/Nova 75-79/Camaro 70-80

WH162DZ-BN

$144.59 $180.74
87 sold
Qty 172 in stock

Application:
For Chevy Nova 75-79/ Chevy Camaro 70-80
For Chevy Monte Carlo 83-87/ Oldsmobile Cutlass 78-88
For Chevy Blazer 1973-1985/ Suburban 1976-1980
For Chevy El Camino 78-1987/ Impala 1980-1985
For Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985


Please Notice
To confirm that this part fits your vehicle, check your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

Click here to view all compatible vehicles


Specifications:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Dimensions: 17" H x 26-1/4" W
Overall Dimensions: 18-1/4" H x 31-5/8" W
Upper Inlet: 1-1/2" located on the Driver side
Lower Outlet: 1-1/2" located on the Passenger side
Trans Cooler Included -1/2" 20 Straight Threat G1/4-
Mount Type: Saddle
OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!


Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-5057 Aircraft Grade Raw Aluminum Construction
Full Raw Aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This High Quality Raw Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
