This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
(Both top hose and bottom hose on Passeger side)
Vehical Fitment:
1960-1965 Chevy Biscayne All Engines
1959-1963 Chevy Impala All Engines
1963-1965 Chevy Belair All Engines
1964-1965 Chevy Chevelle All Engines
1959-1962 Chevy Kingswood All Engines
1959-1960 Chevy El Camino /Cabellero All Engines
1964-1965 Chevy El Camino /Cabellero All Engines
1959-1962 Chevy Caprice All Engines

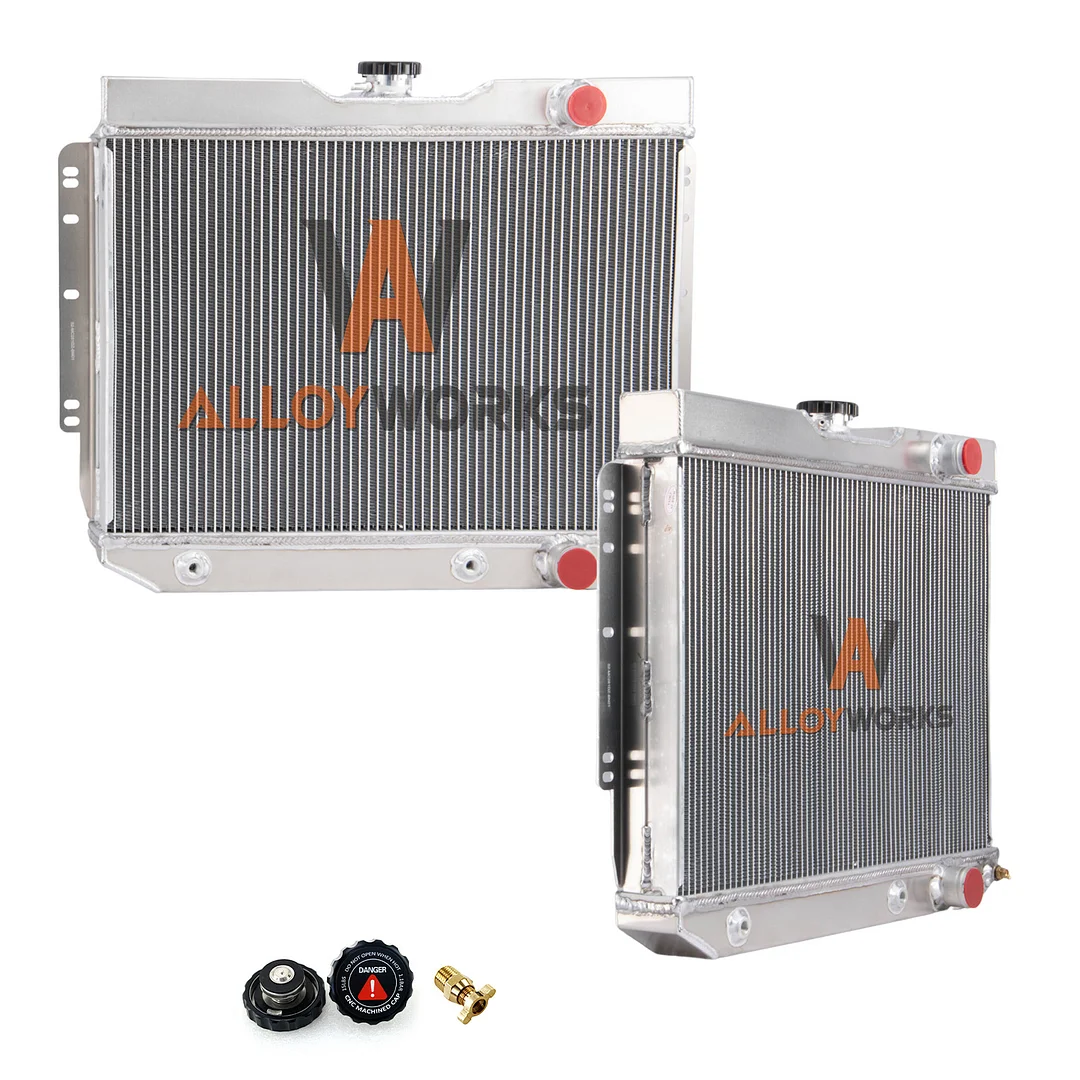

Radiator Configuration:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Core Size: 16 1/2'' X 24 3/4''
Overall Size: 21 3/4" HIGH X 28" WIDE
Inlet Hose Connection: 1 1/2 Passenger Side
Outlet Hose Connection: 1 3/4 Passenger Side
MOUNTING BRACKET BOLT HOLE SPECS: 26 3/4" WIDE Ccheck TO Ccheck
Radiator cap Included: Yes
Transmission Oil Cooler: 12"
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain
WILL FIT AUTOMATIC OR MANUAL TRANSMISSIONS
Description:
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum plate is pressed, high quality and durable.
THE PROBLEM WE WILL HELP YOU SOLVED OUT
