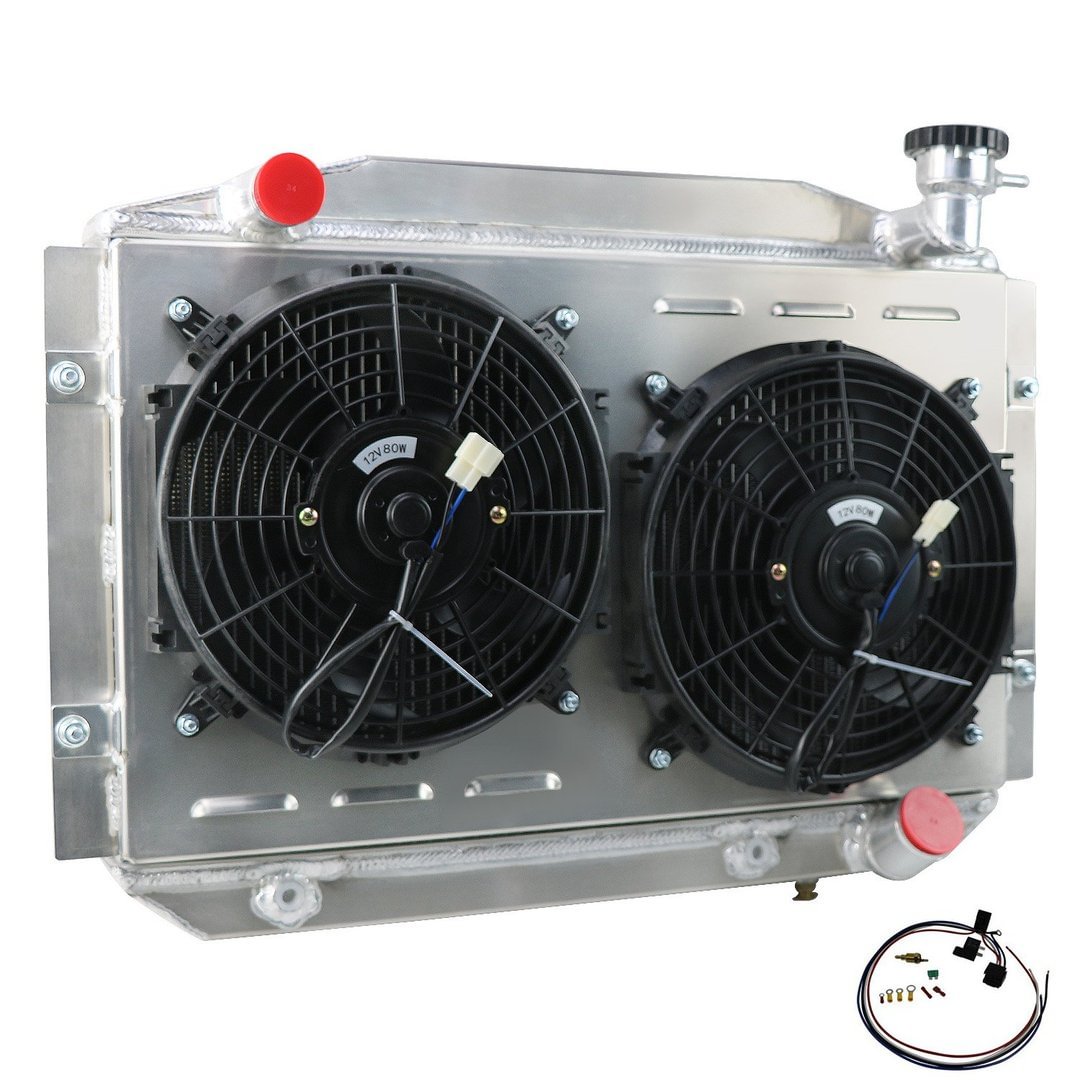

3 Row Aluminum Radiator Shroud Fans For 1955-1960 CHEVY CORVETTE 350 V8
3 Row Aluminum Radiator Shroud Fans For 1955-1960 CHEVY CORVETTE 350 V8
Click here to view all compatible vehicles
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Row Count: 3 Rows
Core Size: 23.4" Wide × 14" High
Overall Size: 26" Wide × 20" High
Upper Inlet: 1 1/2 " On Driver Side
lower outlet: 1 3/4 " On Passenger Side
Transmisson Oil Cooler: φ26*314*G1/4（Z)
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
AA5052 Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
