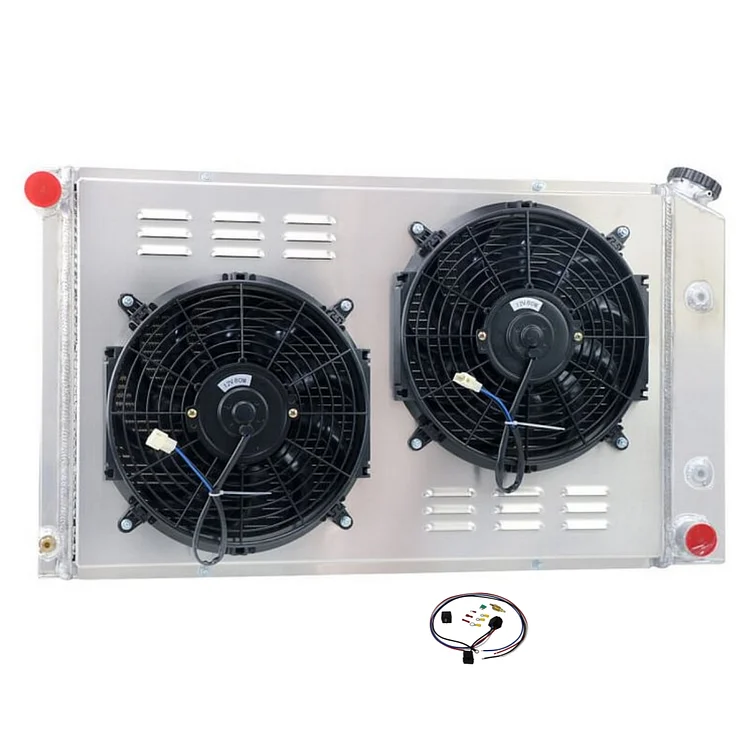

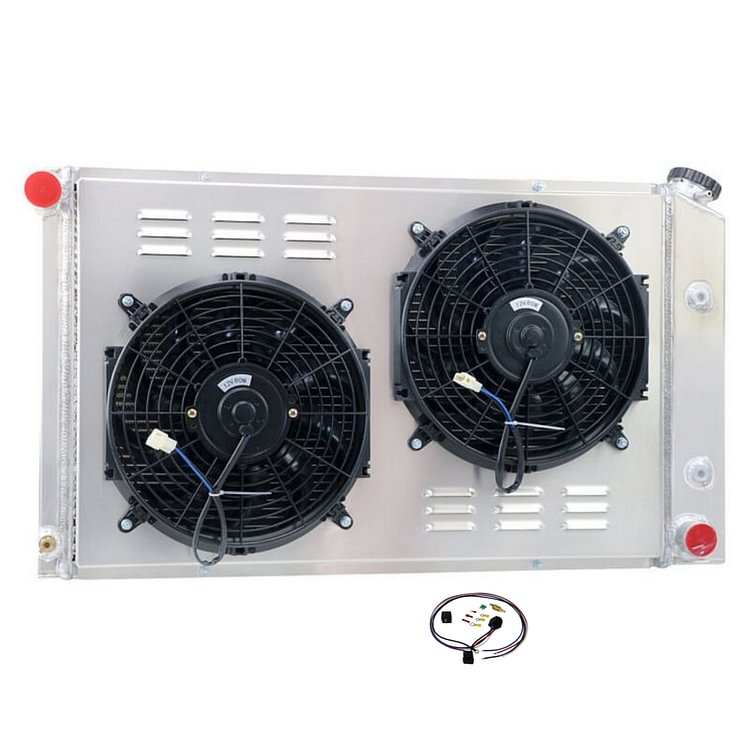

Alloyworks 3 Rows Aluminum Radiator + Shroud Fan For 1970-1981 Pontiac Firebird AM Formula V8 18 3/8" Height x 32 1/2" Width

Alloyworks 3 Rows Aluminum Radiator + Shroud Fan For 1970-1981 Pontiac Firebird AM Formula V8 18 3/8" Height x 32 1/2" Width

536-51394DZFSXJ90W
$249.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Click here to view all compatible vehicles

Specifications:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Size: 17" H x 27 1/2" W
Overall Size: 18 3/8" H x 32 1/2" W
Upper Inlet: 1 1/2" on driver side
Lower Outlet:  1 1/2" on passenger side
Transmission Oil Cooler: G1/4(Z)
OEM Style Brass Petcoke
CNC machined filler neck and 1.3BAR Cap
Please Check the Size Before You Buy!



Fan Specification:

12" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 90 Wattage
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Temperature Relay Switch Sensor Kit:
165~185 degree electric fan thermostat relay switch kit, It is a 3/8" pipe thread.
The kits is set up to turn your electric fan on at 185 degrees and shut off at 165 degrees and will work with any 12 volt system.



Thermostat Relay Kit Instructions:

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full T-5057 Aluminum Construction
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
