3 Row Aluminum Radiator Shroud Fan For 82-1992 Chevy Camaro Pontiac Firebird

3 Row Aluminum Radiator Shroud Fan For 82-1992 Chevy Camaro Pontiac Firebird

WH951DZFSXJ90W-BN
$249.00
Quantity
Please check if this fits your vehicle before purchasing
USA Local Warehouses
1 Year Warranty
60 Days Easy Return
Please check if this fits your vehicle before purchasing
Description

Application:
For Chevrolet Camaro/Pontiac Firebird L4 151Cu 2.5L 1982 1983 1984 1985 1986
For Chevrolet Camaro/Pontiac Firebird V8 305Cu 5.0L 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992
For Chevrolet Camaro/Pontiac Firebird V8 305Cu 5.7L 1987 1988 1989 1990 1991 1992
For Chevrolet Camaro/Pontiac Firebird V6 189Cu 3.1L 1990 1991 1992
For Pontiac Firebird 1989 V6 231Cu 3.8L Engine

Click here to view all compatible vehicles

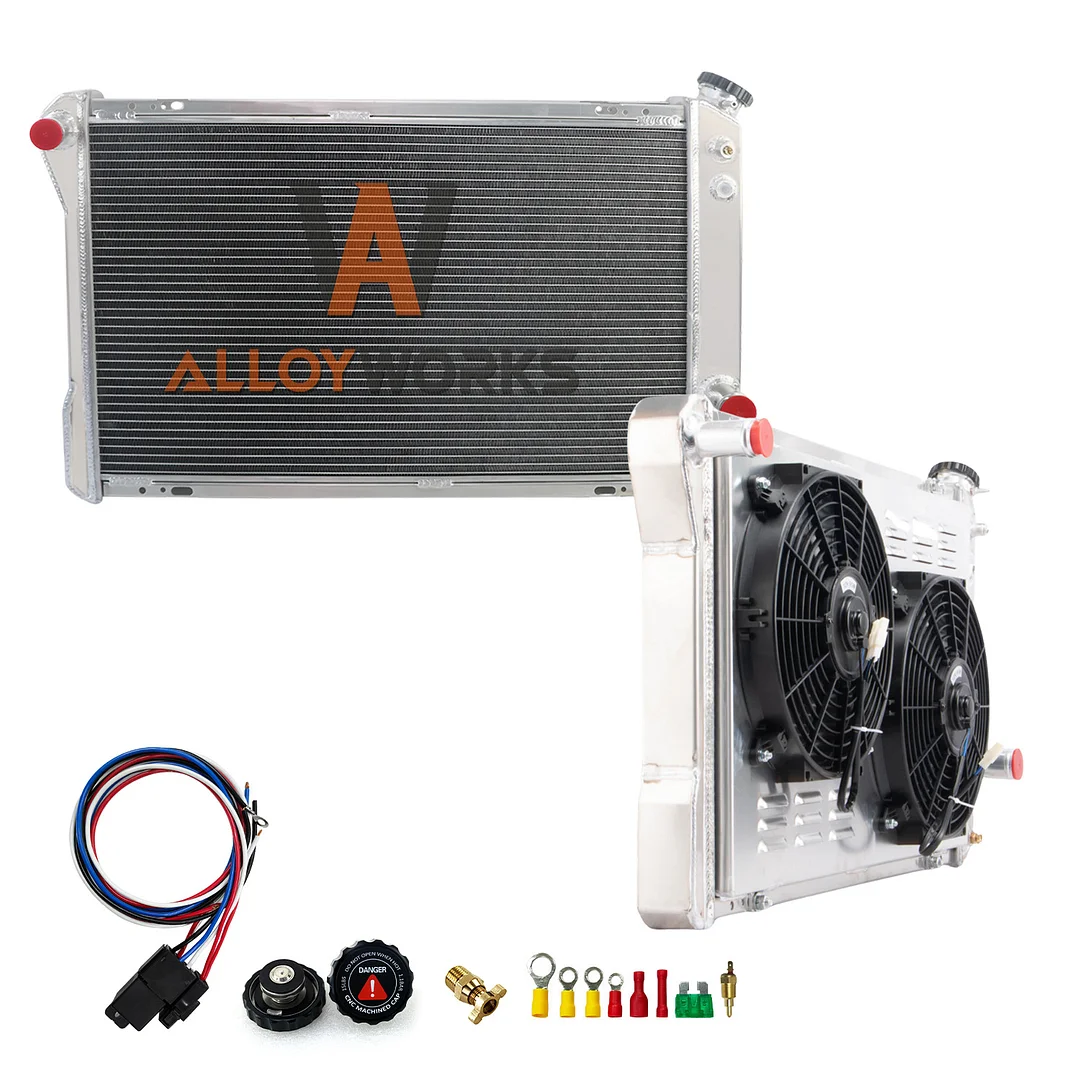

Package Include:
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

This Radiator Size:
3 Rows Of Tubes
Core Size: 26 1/4" w x 17 3/8" h
OVERALL DIMENSIONS:32" WIDE x 19 1/2" HIGH
Tank Size: 2 1/2 x 18 5/8
Inlet Hose Connection: 1 3/8 Driver Side
Outlet Hose Connection: 1 5/8 Passenger Side
FITS AUTOMATIC OR MANUAL TRANSMISSIONS
Transmission Oil Cooler: YES
OEM Style Brass Petcock Drain
Trans Cooler Details: 1/2"" 20 Straight Thread G1/4
Mounting Type: Saddle
Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 1730cf
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
