3 Row Aluminum Radiator Shroud 16"Fan For 2002-2006 Jeep Liberty 3.7L V6 GAS
3 Row Aluminum Radiator Shroud 16"Fan For 2002-2006 Jeep Liberty 3.7L V6 GAS
Fits: 2002-2006 Jeep Liberty 3.7L 226Cu. In. V6 GAS SOHC Naturally Aspirated
Click here to view all compatible vehicles

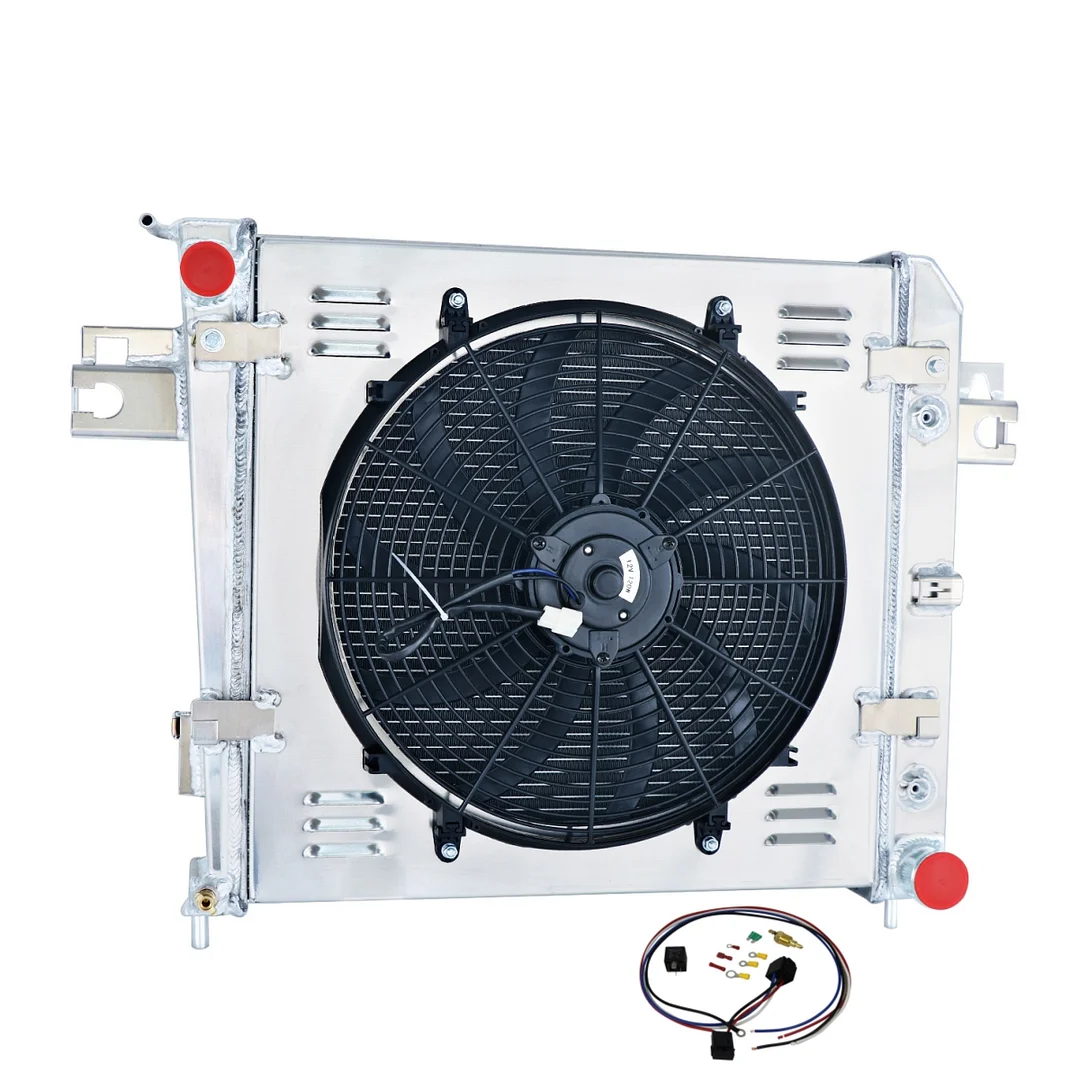

1 X3-ROW Aluminum Radiator
1 X Aluminum Shroud
1 X Thermostat Temperature Switch Relay Kit
Material: AA5052 Aluminium
High Performance Racing Spec.
3-Row of tubes Core Racing Design
100% welded by TIG, no epoxy.
Core Width: 19.88 inches
Core Height: 19.61 inches
Overall Width: 31 inches
Overall Height: 22.5 inches
Inlet Hose Diameter: 1.5 inches
Outlet Hose Diameter: 1.81 inches
Radiator Drain Plug:OEM Style Brass Petcock Drain.
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 3.27"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
100% TIG welded Aluminum,Precision TIG welded construction.
Billet CNC machined filler neck,Billet CNC machined fittings retain all mounting connections.
We are specialists in torch welding with solder as well as aluminum welding both with a torch as well as with a tig welding machine.Tig-weld every All-Aluminum Radiator to perfection to make a great looking radiator that won't crack or leak.
Core straps provide strength and added rigidity for extreme reliability in demanding conditions.
Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
Aluminum Radiator is at least 30%-45% more efficient than stock ones.
