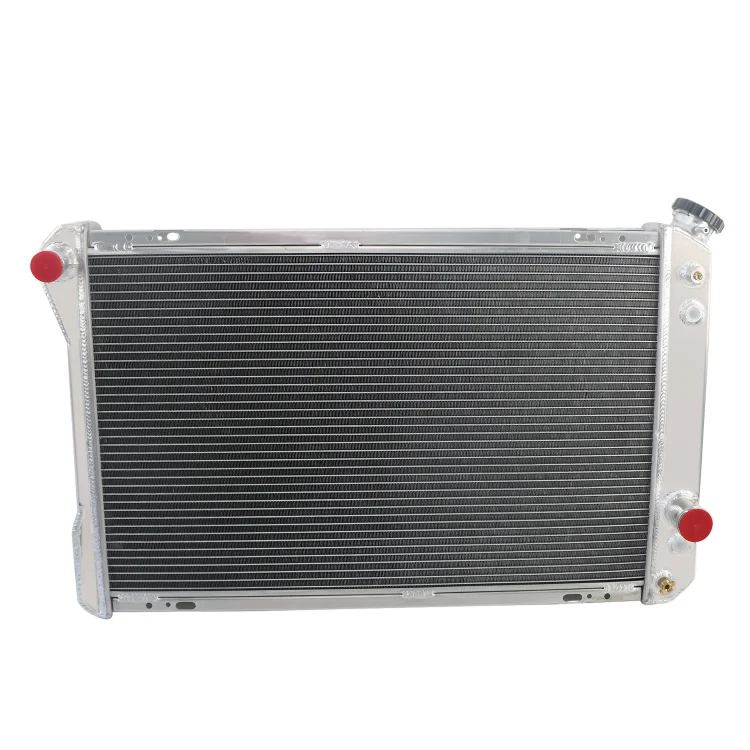

3 Row Aluminum Radiator For Chevy Camaro / Pontiac Firebird Trans Am 1982-1992

WH951DZ

$199.00
15 sold
$248.75 20% Off
Only left in stock
Get it between days - days

This Listing Is Including one 3 Row of tube core Full Aluminum Radiator only (Contain CNC machined filler neck and cap)


Application:
For Chevrolet Camaro 1982 - 1984 L4 2.5L Engine
For Chevrolet Camaro 1982 - 1992 V8 5.0L Engine
For Chevrolet Camaro 1987 - 1992 V8 5.7L Engine
For Chevrolet Camaro 1990 - 1992 V6 3.1L Engine
For Pontiac Firebird 1982 - 1992 V8 5.0L Engine
For Pontiac Firebird 1987 - 1992 V8 5.7L Engine
For Pontiac Firebird 1989 V6 3.8L Engine
For Pontiac Firebird 1990 - 1992 V6 3.1L Engine
This radiator is designed for either a 2.5L(151ci) L4, 3.8L(231ci) V6, 5.0L(305ci) V8 or a 5.7L(350ci) V8 engine

Click here to view all compatible vehicles


Specifications:
Core Material: All Aluminum
Tank Material: T-5057 Aircraft Grade Aluminum
Surface Finish: Raw Aluminum Unpainted
Includes CNC machined filler neck and cap
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
3 Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Cross Flow
Core Dimensions: 26.25" x 16.75" x 2.00"
Overall Dimensions: 30.75" x 18.75" x 2.50"
Inlet / Outlet Diameter: 1.25" /1.5"
Upper / Lower Hose Fitting: Driver / Pass
Trans Cooler Details: 1/2" 20 Straight Thread G1/4
Mounting Type: Saddle
Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2
Please Check the Size Before You Buy!


Description:
100% Brand New Item
The Radiator are 100% welded seams by TIG
We All Products With Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets Or Exceeds Strict OEM Requirements
T-5057 Aircraft Grade Aluminum Radiator The core of the radiator is welded in vacuum brazing furnace, no epoxy.
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
This Aluminum Radiator is at least 35%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Aluminum plate is pressed, high quality and durable.
