Description
Package Including:

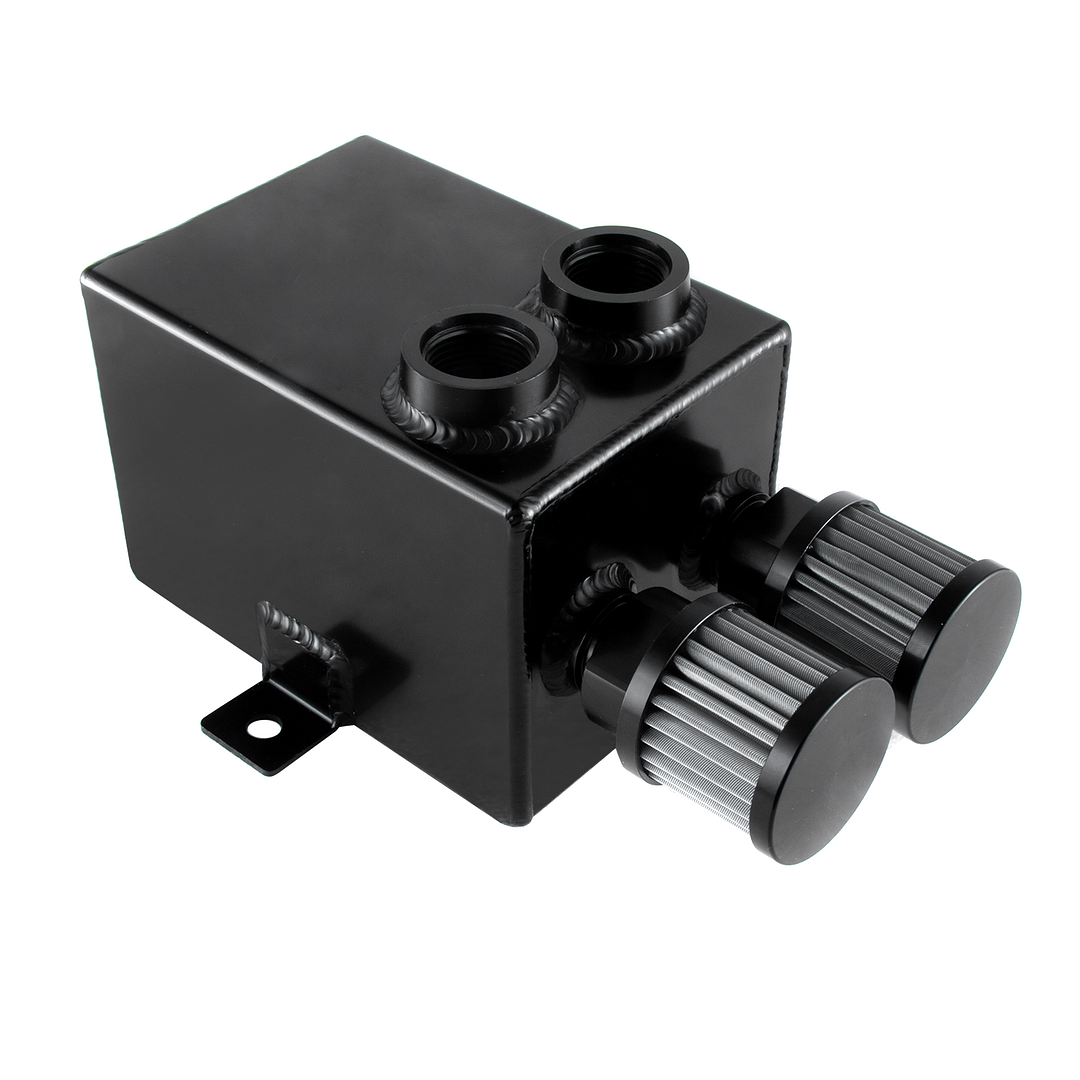

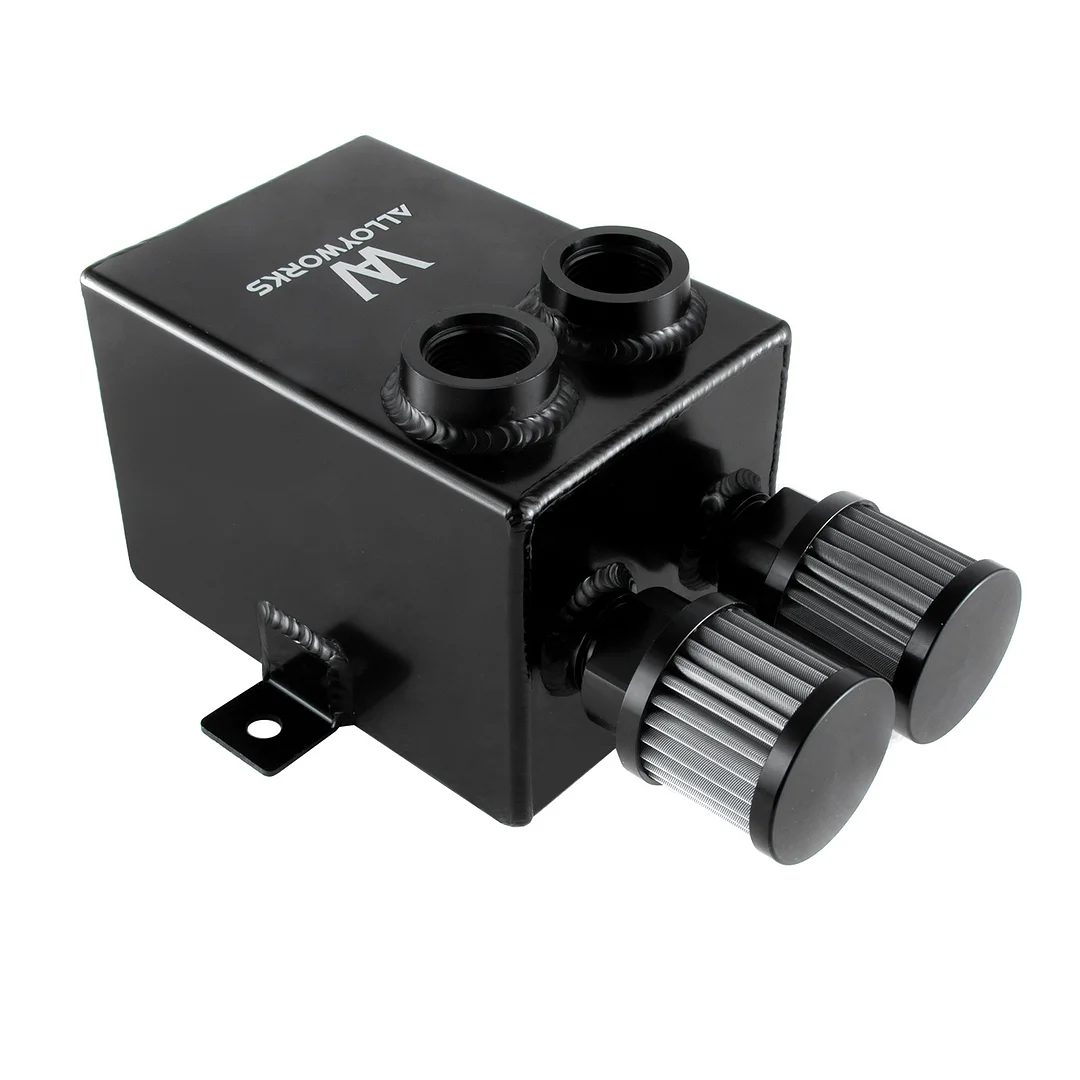

1 x Oil Catch Tank 2 x Filters 1 x Drain Tap All accessories as the photo shown
Specs:
Material: Aluminium Color: Black Depth: 110 mm Width: 110 mm Height: 160 mm (310 mm with filter and drain) Volume: 2.0 L Type: Recirculating or Breathing to atmosphere Number of inlet ports: 2 Inlet port: 12AN ORB female Inlet port fitting included: None included Return/breather port: 12AN JIC male Return port fitting included: None included Drain port: 10AN ORB female Drain port fitting included: Tap Construction: Fabricated Baffled: Yes Fluid level indicator: No
Baffled tank with 2 x 12AN female ports 2 x 12AN top fitting for return lines or filters (included) Filter has a cleanable stainless steel gauze (70 mm H 70 mm Dia) 10AN drain can be used as a return line or drain using the included tap (tap can also be fitted with a return line using the 1/8 NPT thread cut into the bung)
Build with stainless steel filter inside for better performance. This oil catch tank will collect oil and moisture blown by gases from the PCV valve or engine Valve cover ports going to the intake system. With this oil catch can, you keep your engine clean under hard driving conditions . Allowing ''cleaner'' gases to be passed back into the intake. Keeping the engine intake, valves, and pistons clean will not loss of power in the future. Made of high-quality aluminum sheet, tig welded construction . Drainer at the bottom for easy draining. Fitting bracket welded onto the tank . Perfect for turbo & non-turbo engines . Please note: no installation instruction is included, professional installation recommended.
