2 ROW Radiator Shroud Fan Thermostat For 2003-2007 Ford Powerstroke F250 F350 6L
PT3146DFSXJ-BN







2 ROW Radiator Shroud Fan Thermostat For 2003-2007 Ford Powerstroke F250 F350 6L
PT3146DFSXJ-BN
pplication:
Direct fit for 2003–2007 Ford trucks equipped with the 6.0L Powerstroke
2003-2005 Ford Excursion Powerstroke Diesel 6.0L (Automatic Transmission)
2003-2007 Ford F-250 Powerstroke Diesel 6.0L (Manual And Automatic Transmission)
2003-2007 Ford F-350 Powerstroke Diesel 6.0L (Manual And Automatic Transmission)
2003-2007 Ford F-450 Powerstroke Diesel 6.0L (Manual And Automatic Transmission)
Part Number:3C3Z8005DF 4C3Z8009BACP 4C3Z8009BA 2741 CU2741 DPI2741 RAD2741

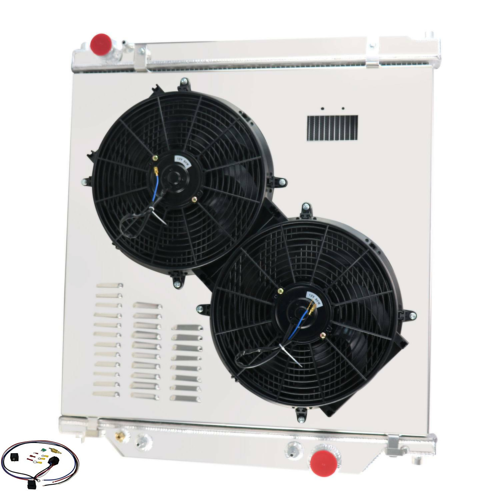

Package Include:
1 X 2-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Configuration:
Material: AA5052 Aluminum
2-Row of tubes Core Racing Design
Core Size:29.06" H X 28.54" W
Overall Size:34.5" H X 3.2" W X 4.5"
Inlet Size : 1.77’’
Outlet Size: 1.97’’
Drain Plug Thread:M12 x 1.5
TOC Thread: M18 x 1.5
Transmission Oil Cooler: φ32*305*M18*1.5(P)
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 14'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Number of Blades: 8 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute): 2250cfm
Maximum Fan RPM(Revolution(s) Per Minute): 2000±10%
Fan Thickness: 2.64"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.
AA5052 Aluminum Shroud+Fan:
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
