Fits:
2003-2009 Lexus GX470 4.7L 4663CC 285Cu. In. V8
2003-2009 Toyota 4Runner 4.7L 4663CC 285Cu. In. V8
2003-2005 Toyota 4Runner 4.7L 4650CC 284Cu. In. V8
Radiator Configuration:
Material:AA5052 Aluminium
High Performance Racing Spec.
2-Row of tubes Core Racing Design
Core Width: 25-9/16"
Core Height: 23-3/8"
Inlet Diameter: 1 1/2''
Outlet Diameter: 1 1/2''
Transmisson Oil Cooler:φ26×250×M14×1.5
OEM Style Brass Petcock Drain.
CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar
Fans Details:
Volt :12v
Motor:90W
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

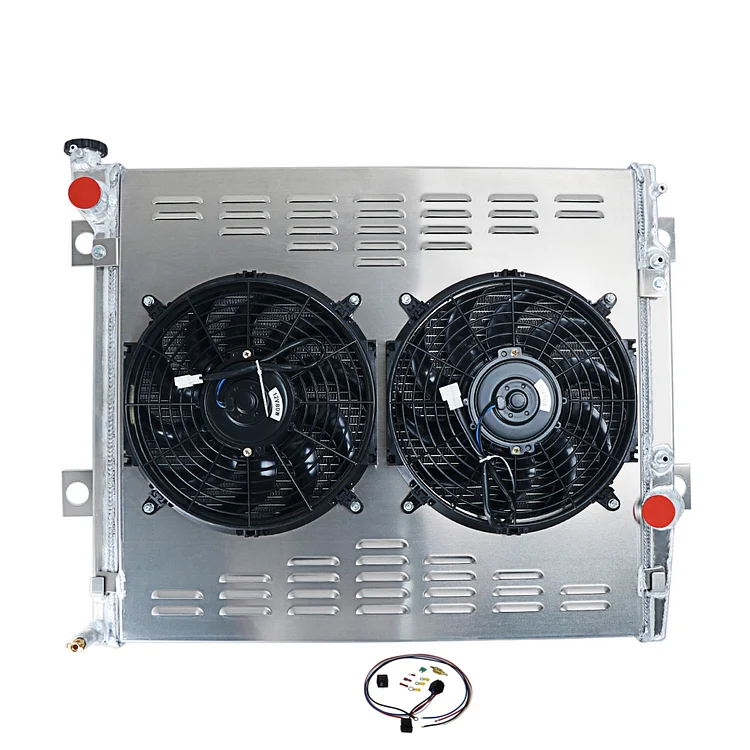

Package Include:
1 X 2-Row AA5052 Aluminum Radiator
1 X CNC Machined 1.3Bar Radiator Cap
1 X AA5052 Aluminum Shroud
2X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
