2 Row Radiator 06-12 For Chevy Colorado GMC Canyon HUMMER H3 H3T 5.3L

536-51446DZFSXJ120W-BN

2 Row Radiator 06-12 For Chevy Colorado GMC Canyon HUMMER H3 H3T 5.3L

536-51446DZFSXJ120W-BN

Price
$0.00
$275.00
Save $-275.00
Quantity
Please check the compatible vehicles below.
Please check the size before you buy.
There may be some deviation in manual measurement data
One year warranty and USA warehouse

Click here to view all compatible vehicles

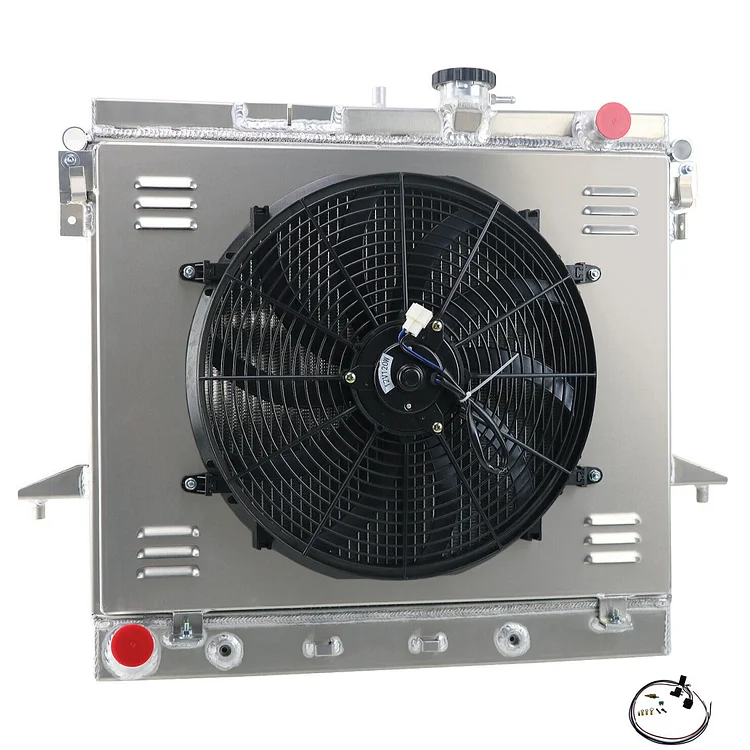

Package Include:
1 X 2-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Specifications:
2-Row of tubes Core Racing Design
Core Size: 18 1/2 x 22 15/16 In
Inlet Connection: 1 5/16 In
Outlet Connection: 1 9/16 In
Engine Oil Cooler: No
Transmission Oil Cooler: 12 In
Please Check the Size Before You Buy!

Features

1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

2.Brazed core technology to guarantee optimum performance and dependability

3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4.Billet Aluminum CNC machined fill neck rugged and durable

5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6.Carefully crafted to exceptional OE standards for precise fit.

Please Notice
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

Fan Specification:
16" Fan
Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

  1. Shuttered designAA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
  2.  S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
